Texas Instruments TRF3761-H Product Info

Parameters

Frequency (max) (MHz)	2175
Frequency (min) (MHz)	2028
Normalized PLL phase noise (dBc/Hz)	-137
Features	Integer N PLL, Integrated VCO
Current consumption (mA)	130
Integrated VCO	Yes
Operating temperature range (°C)	-40 to 85
Rating	Catalog
Lock time (µs) (typ) (s)	>350

Package

VQFN (RHA)-40-36 mm² 6 x 6

Features

Fully Integrated VCO
Low Phase Noise: –137dBc/Hz (at 600kHz, f_VCO
of 1.9GHz)
Low Noise Floor: –158dBc/Hz at 10MHz Offset
Integer-N PLL
Input Reference Frequency range: 10MHz to
104MHz
VCO Frequency Divided by 2-4 Output
Output Buffer Enable Pin
Programmable Charge Pump Current
Hardware and Software Power Down
3-Wire Serial Interface
Single Supply: 4.5V to 5.25V Operation

Fully Integrated VCO
Low Phase Noise: –137dBc/Hz (at 600kHz, f_VCO
of 1.9GHz)
Low Noise Floor: –158dBc/Hz at 10MHz Offset
Integer-N PLL
Input Reference Frequency range: 10MHz to
104MHz
VCO Frequency Divided by 2-4 Output
Output Buffer Enable Pin
Programmable Charge Pump Current
Hardware and Software Power Down
3-Wire Serial Interface
Single Supply: 4.5V to 5.25V Operation

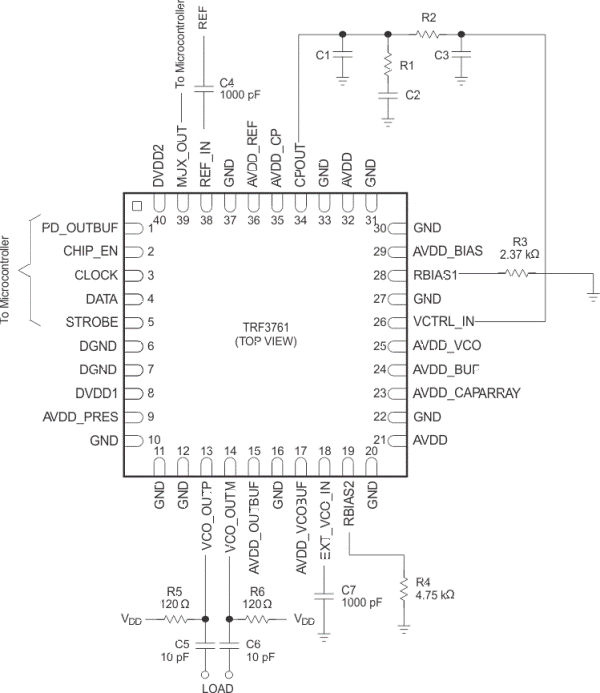

Description

TRF3761 is a family of high performance, highly integrated frequency synthesizers, optimized for high performance applications. The TRF3761 includes a low-noise, voltage-controlled oscillator (VCO) and an integer-N PLL.

TRF3761 integrates divide-by 1, 2, or 4 options for a more flexible output frequency range. It is controlled through a 3-wire serial-programming-interface (SPI) interface. For power sensitive applications the TRF3761 can be powered down by the SPI interface or externally via chip_en pin 2.

TRF3761 is a family of high performance, highly integrated frequency synthesizers, optimized for high performance applications. The TRF3761 includes a low-noise, voltage-controlled oscillator (VCO) and an integer-N PLL.

TRF3761 integrates divide-by 1, 2, or 4 options for a more flexible output frequency range. It is controlled through a 3-wire serial-programming-interface (SPI) interface. For power sensitive applications the TRF3761 can be powered down by the SPI interface or externally via chip_en pin 2.
