Texas Instruments TPUL2T323-Q1 Product Info

Parameters

Technology family	TPUL
Supply voltage (min) (V)	1.5
Supply voltage (max) (V)	5.5
Number of channels	2
IOL (max) (mA)	12
IOH (max) (mA)	-12
Input type	Schmitt-Trigger
Output type	Push-Pull
Features	Balanced outputs, High speed (tpd 10-50ns), Over-voltage tolerant inputs, Partial power down (Ioff), Retriggerable
Rating	Automotive
Operating temperature range (°C)	-40 to 125

Package

TSSOP (PW)-16-32 mm² 5 x 6.4

Features

AEC-Q100 qualified for automotive applications:
- Device temperature grade 1: -40°C to +125°C
- Device HBM ESD classification level 2
- Device CDM ESD classification level C4B
Available in wettable flank QFN package
RC configurable from 10ms to 880s
Extended pulse width functionality reduces capacitor value required for long pulse widths by factor of 1000
For pulses less than 10ms, use TPUL2G123Q1
1% typical, 10% maximum pulse width variation
Wide operating range of 1.5V to 5.5V
Inputs accept voltages up to 5.5V
TTL-compatible with 4.5V to 5.5V supply
Schmitt-trigger architecture on all inputs
Single-supply voltage translator (refer to Reduced Input Threshold Voltage):
- Up translation:
  - 1.2V to 1.8V
  - 1.5V to 2.5V
  - 1.8V to 3.3V
  - 3.3V to 5.0V
- Down translation:
  - 5.0V, 3.3V, 2.5V to 1.8V
  - 5.0V, 3.3V to 2.5V
  - 5.0V to 3.3V

AEC-Q100 qualified for automotive applications:
- Device temperature grade 1: -40°C to +125°C
- Device HBM ESD classification level 2
- Device CDM ESD classification level C4B
Available in wettable flank QFN package
RC configurable from 10ms to 880s
Extended pulse width functionality reduces capacitor value required for long pulse widths by factor of 1000
For pulses less than 10ms, use TPUL2G123Q1
1% typical, 10% maximum pulse width variation
Wide operating range of 1.5V to 5.5V
Inputs accept voltages up to 5.5V
TTL-compatible with 4.5V to 5.5V supply
Schmitt-trigger architecture on all inputs
Single-supply voltage translator (refer to Reduced Input Threshold Voltage):
- Up translation:
  - 1.2V to 1.8V
  - 1.5V to 2.5V
  - 1.8V to 3.3V
  - 3.3V to 5.0V
- Down translation:
  - 5.0V, 3.3V, 2.5V to 1.8V
  - 5.0V, 3.3V to 2.5V
  - 5.0V to 3.3V

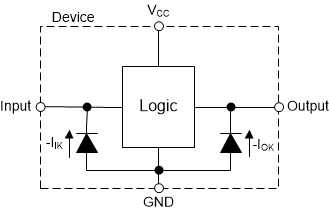

Description

The TPUL2T323-Q1 device contains two independent extended-pulse-width RC-configurable retriggerable monostable multivibrators designed for 1.5V to 5.5V operation. The output pulse duration is configured by selecting external resistance and capacitance values with an approximate output pulse width of two ≅ 1000 × R × C.

This device features three inputs, allowing for rising edge (T) and falling edge (T) triggers and a clear input (CLR) that can be used asynchronously to stop an active output pulse. All inputs include Schmitt-trigger architecture to allow for slow input transition rates and improve noise immunity.

The TPUL2T323-Q1 device contains two independent extended-pulse-width RC-configurable retriggerable monostable multivibrators designed for 1.5V to 5.5V operation. The output pulse duration is configured by selecting external resistance and capacitance values with an approximate output pulse width of two ≅ 1000 × R × C.

This device features three inputs, allowing for rising edge (T) and falling edge (T) triggers and a clear input (CLR) that can be used asynchronously to stop an active output pulse. All inputs include Schmitt-trigger architecture to allow for slow input transition rates and improve noise immunity.
