SN74LV374A

ACTIVE

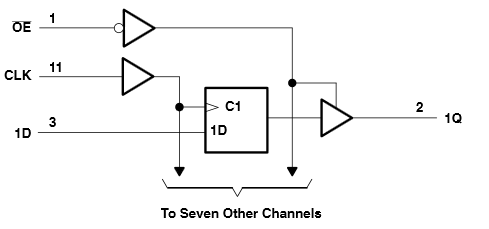

Octal Edge-Triggered D-Type Flip-Flops With 3-State Outputs

Texas Instruments SN74LV374A Product Info

1 April 2026 0

Parameters

Number of channels

8

Technology family

LV-A

Supply voltage (min) (V)

2

Supply voltage (max) (V)

5.5

Input type

Standard CMOS

Output type

3-State

Clock frequency (max) (MHz)

70

IOL (max) (mA)

12

IOH (max) (mA)

-12

Supply current (max) (µA)

20

Features

Balanced outputs, High speed (tpd 10-50ns), Over-voltage tolerant inputs, Partial power down (Ioff)

Operating temperature range (°C)

-40 to 125

Rating

Catalog

Package

SOIC (DW)-20-131.84 mm² 12.8 x 10.3

Features

  • V CC operation of 2 V to 5.5 V
  • Maximum t pd of 9.5 ns at 5 V
  • Typical V OLP (Output Ground Bounce) <0.8 V at V CC = 3.3 V, T A = 25°C
  • Typical V OHV (Output V OH Undershoot) >2.3 V at V CC = 3.3 V, T A = 25°C
  • Support Mixed-Mode Voltage Operation on All Ports
  • I off Supports Partial-Power-Down Mode Operation
  • Latch-up Performance Exceeds 250 mA Per JESD 17
  • V CC operation of 2 V to 5.5 V
  • Maximum t pd of 9.5 ns at 5 V
  • Typical V OLP (Output Ground Bounce) <0.8 V at V CC = 3.3 V, T A = 25°C
  • Typical V OHV (Output V OH Undershoot) >2.3 V at V CC = 3.3 V, T A = 25°C
  • Support Mixed-Mode Voltage Operation on All Ports
  • I off Supports Partial-Power-Down Mode Operation
  • Latch-up Performance Exceeds 250 mA Per JESD 17

Description

The SN74LV374A devices are octal edge-triggered D-type flip-flops designed for 2 V to 5.5 V V CC operation.

The SN74LV374A devices are octal edge-triggered D-type flip-flops designed for 2 V to 5.5 V V CC operation.
