ACTIVE
Rating |
Catalog |
Topology |
Buck, Step-Down Converter, Synchronous Buck |
Iout (max) (A) |
2 |
Vin (max) (V) |
5.5 |
Vin (min) (V) |
2.25 |
Vout (max) (V) |
4.5 |
Vout (min) (V) |
0.5 |
Features |
1.2-V compatible control inputs, EMI Tested, Enable, Light Load Efficiency, Output discharge, Overcurrent protection, Power good |
EMI features |
Integrated capacitors, Low parasitic Hotrod packaging |
Operating temperature range (°C) |
-40 to 125 |
Type |
Converter, Converter (Integrated Switch), DC/DC converter, Module |
Duty cycle (max) (%) |
100 |
Control mode |
COT, Constant on-time (COT), DCS-Control |
Switching frequency (min) (kHz) |
4000 |
Switching frequency (max) (kHz) |
4000 |
QFN-FCMOD (RDS)-9-9 mm² 3 x 3

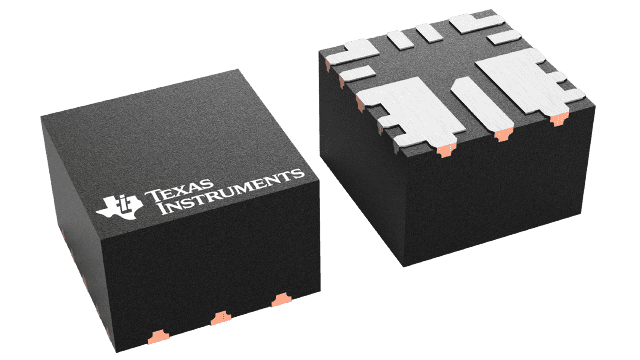

The TPSM82830x are a family of 1A, 2A, and 3A, pin-to-pin compatible, easy-to-use, synchronous, step-down, DC/DC modules with integrated inductor and EMI reduction technologies. The devices use DCS-Control topology for fast transient response with small output capacitance. The output voltage can be set down to 0.5V with high feedback voltage accuracy of 1% over the full operating junction temperature range. A mode pin selects between power saving and forced-PWM mode. The power save mode is for longer battery life and the forced PWM mode reduces ripple with continuous conduction in the inductor at a quasi fixed switching frequency. An internal soft-start circuit reduces inrush current and a power-good signal indicates correct output voltage. HICCUP short-circuit protection combined with thermal shutdown protect device and application. The family is available in a 3.0mm × 3.0mm QFN package and in the 2.5mm × 2.6mm MagPack package.
