Product
0
TPS92613-Q1
  • TPS92613-Q1
  • TPS92613-Q1

TPS92613-Q1

ACTIVE

Automotive single-channel LED driver with 600mA output, open and short detection

Texas Instruments TPS92613-Q1 Product Info

1 April 2026 1

Parameters

Number of channels

1

Topology

Current Source

Rating

Automotive

TI functional safety category

Functional Safety-Capable

Operating temperature range (°C)

-40 to 125

Vin (min) (V)

4.5

Vin (max) (V)

40

Vout (min) (V)

0

Vout (max) (V)

40

Iout (max) (A)

0.6

Iq (typ) (mA)

0.2

Features

Enable/Shutdown, Fault Detection, Fault Diagnostic, LED Open Detection, LED Short to Ground Detection, Thermal shutdown

Package

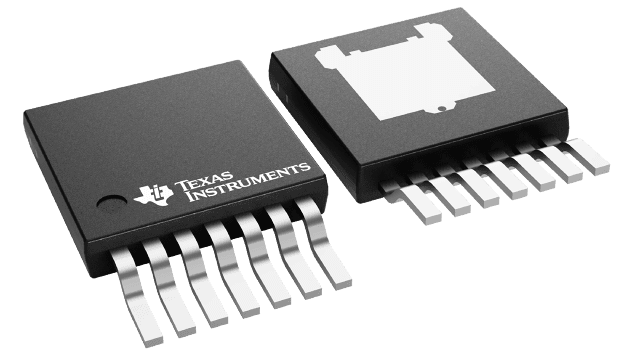

TO-263 (NDR)-7-142.3416 mm² 10.16 x 14.01

Features

  • AEC-Q100-qualified for automotive applications:
    • Temperature grade 1: –40°C to +125°C, TA
  • Functional safety capable
    • Documentation available to aid functional safety system design
  • Wide input voltage range: 4.5 V to 40 V
  • Low quiescent and low fault-mode current: typical 200 µA
  • Single high-precision current regulation:
    • ±4.6% Accuracy over full junction temperature range
    • Constant current adjustable by external sense resistor
    • Up to 600 mA maximum current
    • Brightness control by input PWM duty cycle
  • Heat sharing with external resistor
  • Low dropout voltage (sense-resistor voltage drop included):
    • Maximum dropout: 150 mV at 10 mA
    • Maximum dropout: 400 mV at 70 mA
    • Maximum dropout: 700 mV at 150 mA
    • Maximum dropout: 1.3 V at 300 mA
  • Diagnostics and protection:
    • LED open-circuit and short-circuit detection with auto-recovery
    • Diagnostic enable with adjustable threshold for low-dropout operation
    • Fault bus up to 15 devices, configurable as either one-fails–all-fail or only-failed-channel-off (N-1)
    • Thermal shutdown
  • Operating junction temperature range: –40°C to +150°C
  • AEC-Q100-qualified for automotive applications:
    • Temperature grade 1: –40°C to +125°C, TA
  • Functional safety capable
    • Documentation available to aid functional safety system design
  • Wide input voltage range: 4.5 V to 40 V
  • Low quiescent and low fault-mode current: typical 200 µA
  • Single high-precision current regulation:
    • ±4.6% Accuracy over full junction temperature range
    • Constant current adjustable by external sense resistor
    • Up to 600 mA maximum current
    • Brightness control by input PWM duty cycle
  • Heat sharing with external resistor
  • Low dropout voltage (sense-resistor voltage drop included):
    • Maximum dropout: 150 mV at 10 mA
    • Maximum dropout: 400 mV at 70 mA
    • Maximum dropout: 700 mV at 150 mA
    • Maximum dropout: 1.3 V at 300 mA
  • Diagnostics and protection:
    • LED open-circuit and short-circuit detection with auto-recovery
    • Diagnostic enable with adjustable threshold for low-dropout operation
    • Fault bus up to 15 devices, configurable as either one-fails–all-fail or only-failed-channel-off (N-1)
    • Thermal shutdown
  • Operating junction temperature range: –40°C to +150°C

Description

With LEDs being widely used in automotive applications, simple LED drivers are more and more popular. Comparing to discrete solutions, a low-cost monolithic solution lowers system-level component count and significantly improves current accuracy and reliability.

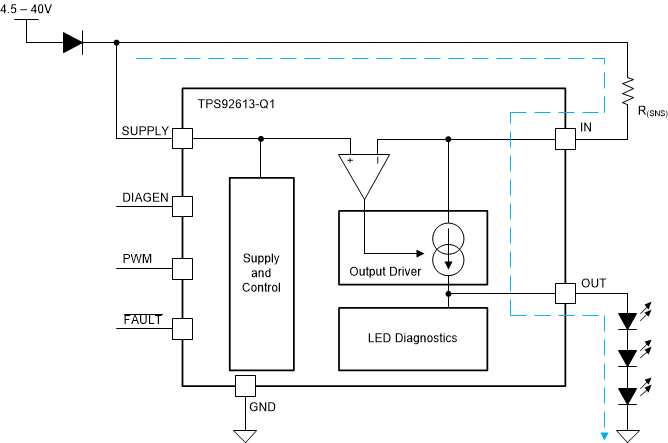

The TPS92613-Q1 device is a single-channel, high-side LED driver operating from an automotive car battery. It is a simple, yet elegant, solution to deliver constant current for a single LED string with full LED diagnostics. The one-fails–all-fail feature is able to work together with other LED drivers, such as the TPS9261x-Q1, TPS9263x-Q1, and TPS92830-Q1 devices, to address different requirements.

With LEDs being widely used in automotive applications, simple LED drivers are more and more popular. Comparing to discrete solutions, a low-cost monolithic solution lowers system-level component count and significantly improves current accuracy and reliability.

The TPS92613-Q1 device is a single-channel, high-side LED driver operating from an automotive car battery. It is a simple, yet elegant, solution to deliver constant current for a single LED string with full LED diagnostics. The one-fails–all-fail feature is able to work together with other LED drivers, such as the TPS9261x-Q1, TPS9263x-Q1, and TPS92830-Q1 devices, to address different requirements.
