TPS92612-Q1
  • TPS92612-Q1
  • TPS92612-Q1

TPS92612-Q1

ACTIVE

Automotive single-channel LED driver with 150mA output, short protection

Texas Instruments TPS92612-Q1 Product Info

1 April 2026 0

Parameters

Number of channels

1

Topology

Current Source

Rating

Automotive

TI functional safety category

Functional Safety-Capable

Operating temperature range (°C)

-40 to 125

Vin (min) (V)

4.5

Vin (max) (V)

40

Vout (min) (V)

0

Vout (max) (V)

40

Iout (max) (A)

0.15

Iq (typ) (mA)

0.2

Features

LED Short to Ground Detection, Thermal shutdown

Package

SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8

Features

  • AEC-Q100 Qualified for Automotive Applications
    • Device Temperature Grade 1:
      –40°C to 125°C, TA
  • Functional safety capable
    • Documentation available to aid functional safety system design
  • Single-Channel Constant-Current LED Driver With PWM Dimming
  • Wide Input-Voltage Range: 4.5 V–40 V
  • Constant Output Current, Adjustable by Sense Resistor
  • Precision Current Regulation, Tolerance ±4.6%
  • Maximum Current: 150 mA
  • Heat Sharing With External Resistor
  • Low Dropout Voltage (Current-Sense Voltage Drop Included)
    • Maximum Dropout: 150 mV at 10 mA
    • Maximum Dropout: 400 mV at 70 mA
    • Maximum Dropout: 700 mV at 150 mA
  • Low Standby Current (<250 µA per Device)
  • Protection:
    • LED Short-Circuit Protection With Auto-Recovery
    • Overtemperature Protection
  • Operating Junction Temperature Range: –40°C to 150°C
  • AEC-Q100 Qualified for Automotive Applications
    • Device Temperature Grade 1:
      –40°C to 125°C, TA
  • Functional safety capable
    • Documentation available to aid functional safety system design
  • Single-Channel Constant-Current LED Driver With PWM Dimming
  • Wide Input-Voltage Range: 4.5 V–40 V
  • Constant Output Current, Adjustable by Sense Resistor
  • Precision Current Regulation, Tolerance ±4.6%
  • Maximum Current: 150 mA
  • Heat Sharing With External Resistor
  • Low Dropout Voltage (Current-Sense Voltage Drop Included)
    • Maximum Dropout: 150 mV at 10 mA
    • Maximum Dropout: 400 mV at 70 mA
    • Maximum Dropout: 700 mV at 150 mA
  • Low Standby Current (<250 µA per Device)
  • Protection:
    • LED Short-Circuit Protection With Auto-Recovery
    • Overtemperature Protection
  • Operating Junction Temperature Range: –40°C to 150°C

Description

With LEDs being widely used in automotive applications, simple LED drivers are more and more popular. Compared to discrete solutions, a low-cost monolithic solution lowers system-level component counts and significantly improves current accuracy and reliability.

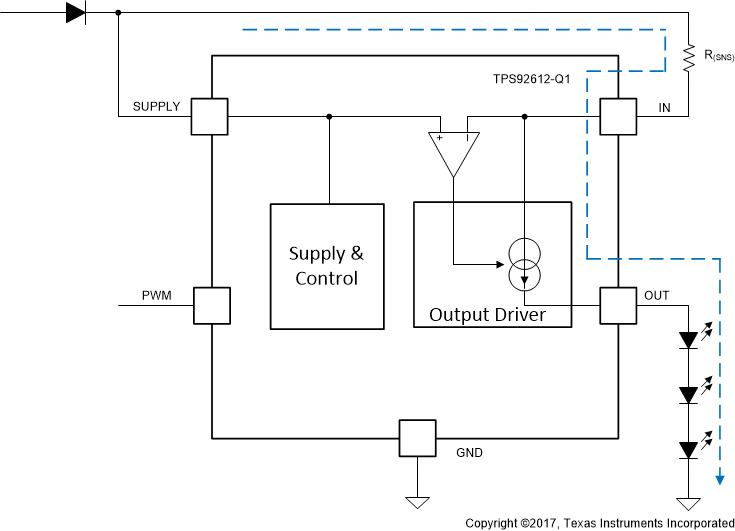

The TPS92612-Q1 device is a simple single-channel high-side LED driver operating from an automotive car battery. It is a simple and elegant solution to deliver constant current for a single LED string.

With LEDs being widely used in automotive applications, simple LED drivers are more and more popular. Compared to discrete solutions, a low-cost monolithic solution lowers system-level component counts and significantly improves current accuracy and reliability.

The TPS92612-Q1 device is a simple single-channel high-side LED driver operating from an automotive car battery. It is a simple and elegant solution to deliver constant current for a single LED string.
