0
ACTIVE
Rating |
Catalog |
Topology |
Buck |
Iout (max) (A) |
2.5 |
Vin (max) (V) |
50 |
Vin (min) (V) |
7 |
Vout (max) (V) |
15 |
Vout (min) (V) |
2.5 |
Features |
EMI Tested, Frequency synchronization, Overcurrent protection, Power good, Tracking |
Operating temperature range (°C) |
-40 to 85 |
Type |
Module |
Duty cycle (max) (%) |
98 |
Switching frequency (min) (kHz) |
400 |
Switching frequency (max) (kHz) |
1000 |

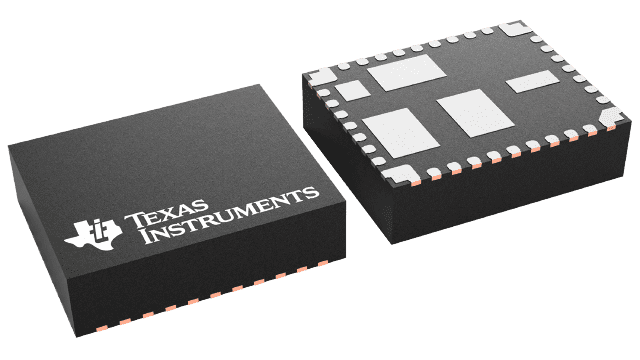

B1QFN (RKG)-41-99 mm² 11 x 9
The TPS84250 is an easy-to-use integrated power solution that combines a 2.5-A DC/DC converter with an inductor and passives into a low profile, QFN package. This total power solution allows as few as five external components and eliminates the loop compensation and magnetics part selection process.
The small 9 mm × 11 mm × 2.8 mm, QFN package is easy to solder onto a printed circuit board and allows a compact point-of-load design with greater than 90% efficiency and excellent power dissipation capability. The TPS84250 offers the flexibility and the feature-set of a discrete point-of-load design and is ideal for powering a wide range of ICs and systems. Advanced packaging technology affords a robust and reliable power solution compatible with standard QFN mounting and testing techniques.
