0
ACTIVE
Local sensor accuracy (max) |
2 |
Type |
Local |
Operating temperature range (°C) |
-55 to 125 |
Supply voltage (min) (V) |
2.7 |
Interface type |
I2C, SMBus |
Supply voltage (max) (V) |
5.5 |
Features |
One-shot conversion |
Supply current (max) (µA) |
75 |
Temp resolution (max) (bps) |
12 |
Remote channels (#) |
0 |
Addresses |
8 |
Rating |
HiRel Enhanced Product |
SOT-23 (DBV)-6-8.12 mm² 2.9 x 2.8

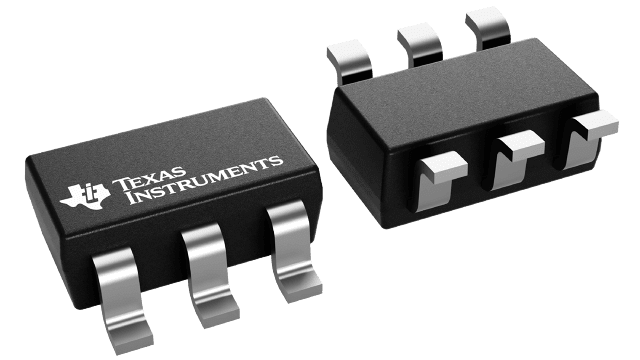

The TMP100 and TMP101 are 2-wire, serial output temperature sensors available in SOT23-6 packages. Requiring no external components, the TMP100 and TMP101 are capable of reading temperatures with a resolution of 0.0625°C.
The TMP100 and TMP101 feature SMBus and I2C™ interface compatibility, with the TMP100 allowing up to eight devices on one bus.
The TMP100 and TMP101 are ideal for extended temperature measurement in a variety of communication, computer, consumer, environmental, industrial, and instrumentation applications.
The TMP100M and TMP101M are specified for operation over a temperature range of 55°C to +125°C.
