TPS61165

ACTIVE

High brightness white LED driver in 2mm x 2mm QFN Package

Texas Instruments TPS61165 Product Info

1 April 2026 2

Parameters

Number of channels

1

Vin (min) (V)

3

Vin (max) (V)

18

Vout (min) (V)

3

Vout (max) (V)

38

Type

Inductive

Switching frequency (max) (kHz)

1200

Duty cycle (max) (%)

93

LED current per channel (mA)

400

Peak efficiency (%)

90

Topology

Boost

Features

EasyScale 1-Wire Interface, Load Disconnect During Shutdown

Operating temperature range (°C)

-40 to 85

Rating

Catalog

Package

SOT-23 (DBV)-6-8.12 mm² 2.9 x 2.8

Features

  • 3-V to 18-V Input voltage range
  • 38-V Open LED protection
  • 200-mV Reference voltage with 2% accuracy
  • 1.2-A Switch FET with 1.2-MHz switching frequency
  • Flexible one-wire digital and PWM brightness control
  • Built-in soft start
  • Up to 90% efficiency
  • 2-mm × 2-mm × 0.8-mm 6-Pin WSON package with thermal pad, and SOT-23 package
  • 3-V to 18-V Input voltage range
  • 38-V Open LED protection
  • 200-mV Reference voltage with 2% accuracy
  • 1.2-A Switch FET with 1.2-MHz switching frequency
  • Flexible one-wire digital and PWM brightness control
  • Built-in soft start
  • Up to 90% efficiency
  • 2-mm × 2-mm × 0.8-mm 6-Pin WSON package with thermal pad, and SOT-23 package

Description

With a 40-V rated integrated switch FET, the TPS61165 device is a boost converter that drives LEDs in series. The boost converter runs at a
1.2-MHz fixed switching frequency with 1.2-A switch current limit, allowing the use of a high-brightness LED in general lighting.

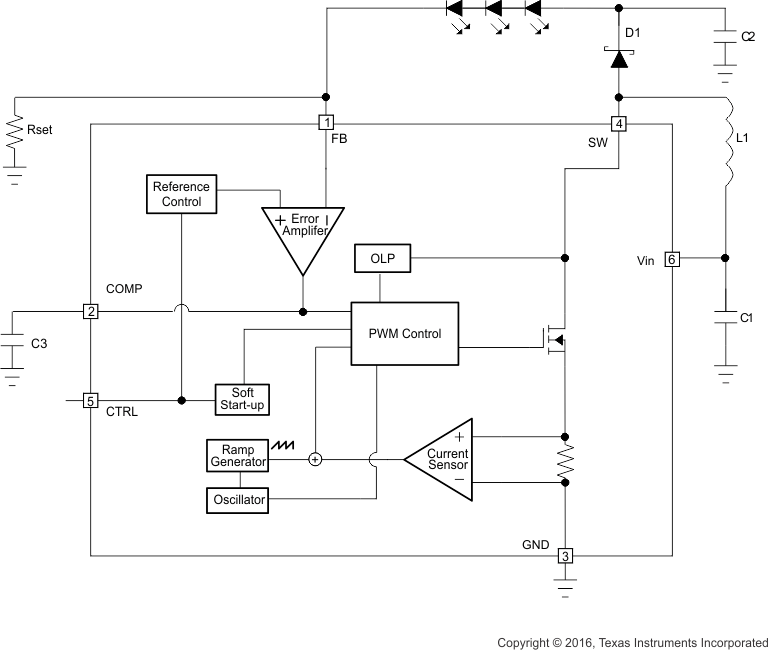

The default white LED current is set with the external sensor resistor Rset, and the feedback voltage is regulated to 200 mV, as shown in the Typical Application drawing below. During the operation, the LED current can be controlled using the one-wire digital interface (EasyScale™ protocol) through the CTRL pin. Alternatively, a pulse-width-modulation (PWM) signal can be applied to the CTRL pin through which the duty cycle determines the feedback reference voltage. In either digital or PWM mode, the TPS61165 device does not burst the LED current; therefore, it does not generate audible noises on the output capacitor. For maximum protection, the device features integrated open-LED protection that disables the TPS61165 device to prevent the output from exceeding its absolute maximum voltage ratings during open LED conditions.
