ACTIVE
Rating |
Catalog |
Topology |
Buck |
Iout (max) (A) |
3 |
Vin (max) (V) |
20 |
Vin (min) (V) |
4.5 |
Vout (max) (V) |
12 |
Vout (min) (V) |
0.9 |
Features |
Enable, Frequency synchronization, Phase Interleaving, Power good, Synchronous Rectification |
Control mode |
Voltage mode |
Operating temperature range (°C) |
-40 to 150 |
Iq (typ) (A) |
0.005 |
Duty cycle (max) (%) |
80 |
HTSSOP (PWP)-16-32 mm² 5 x 6.4
, 4.5-A Peak MOSFET Switch for High Efficiency at 3-A Continuous Output CurrentPowerPAD and SWIFT are trademarks of Texas Instruments.

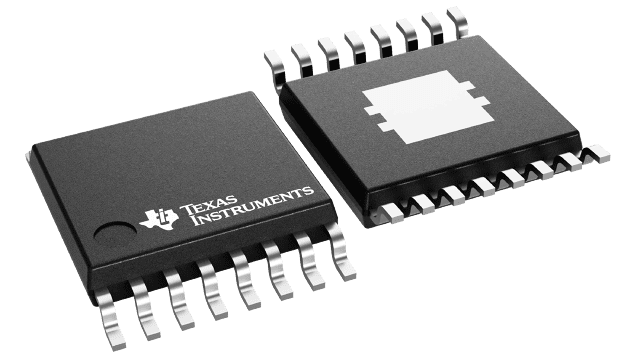

The TPS54350 is a medium output current synchronous buck PWM converter with an integrated high side MOSFET and a gate driver for an optional low side external MOSFET. Features include a high performance voltage error amplifier that enables maximum performance under transient conditions and flexibility in choosing the output filter inductors and capacitors. The TPS54350 has an under-voltage-lockout circuit to prevent start-up until the input voltage reaches 4.5 V; an internal slow-start circuit to limit in-rush currents; and a power good output to indicate valid output conditions. The synchronization feature is configurable as either an input or an output for easy 180° out of phase synchronization.
The TPS54350 device is available in a thermally enhanced 16-pin TSSOP (PWP) PowerPAD package. TI provides evaluation modules and the SWIFT Designer software tool to aid in quickly achieving high-performance power supply designs to meet aggressive equipment development cycles.
