ACTIVE
Rating |
Catalog |
Topology |
Buck |
Iout (max) (A) |
2.5 |
Vin (max) (V) |
18 |
Vin (min) (V) |
4.5 |
Vout (max) (V) |
16.2 |
Vout (min) (V) |
0.8 |
Features |
Enable, Phase Interleaving, Synchronous Rectification |
Control mode |
current mode |
Operating temperature range (°C) |
-40 to 145 |
Iq (typ) (A) |
0.0018 |
Duty cycle (max) (%) |
90 |
HTSSOP (PWP)-16-32 mm² 5 x 6.4
All other trademarks are the property of their respective owners

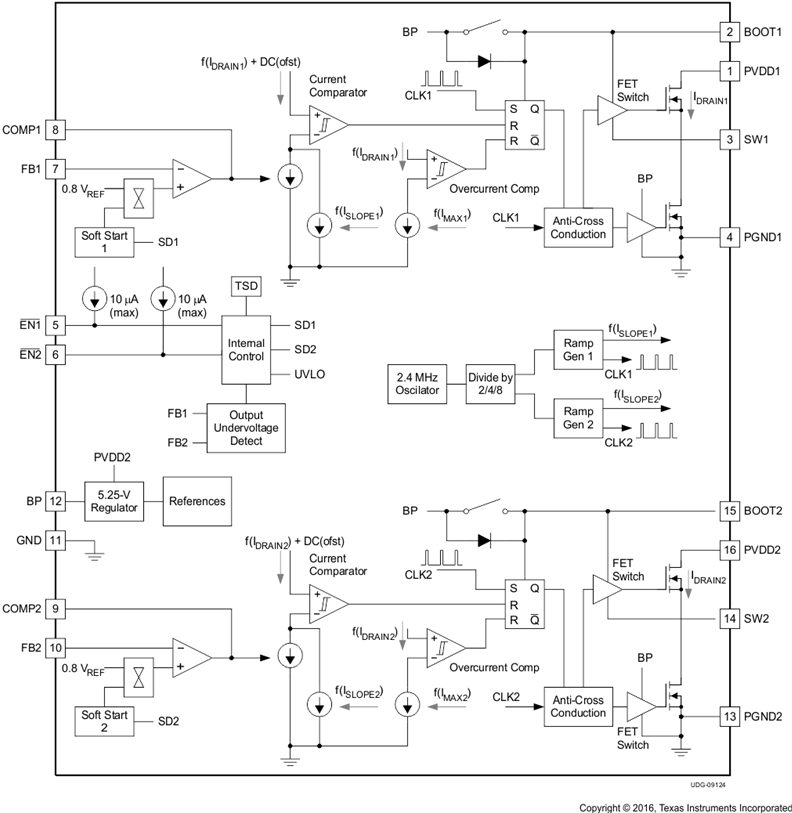

The TPS54290, TPS54291, and TPS54292 devices are dual-output, fully synchronous buck converters capable of supporting applications with a minimal number of external components. It operates from a 4.5-V to 18-V input supply voltage, and supports output voltages as low as 0.8 V and as high as 90% of the input voltage.
Both high-side and low-side MOSFETs are integrated to provide fully synchronous conversion with higher efficiency. Channel 1 can provide up to 1.5 A of continuous current. Meanwhile, Channel 2 supports up to 2.5 A.
Current mode control simplifies the compensation. The external compensation adds flexibility for the user to choose different type of output capacitors.
180° out-of-phase operation reduces the ripple current through the input capacitor, providing the benefit of reducing input capacitance, alleviating EMI and increasing capacitor life.
