ACTIVE
Rating |
Catalog |
Topology |
Buck |
Iout (max) (A) |
30 |
Vin (max) (V) |
28 |
Vin (min) (V) |
3 |
Vout (max) (V) |
1.8 |
Vout (min) (V) |
0 |
Control mode |
D-CAP2 |
Features |
Adjustable current limit, Enable, Light-load efficiency, Output discharge, Power good, Prebias startup, Synchronous rectification, VID: 2-bit |
Duty cycle (max) (%) |
60 |
Iq (typ) (A) |
0.00032 |
Number of phases |
1 |
Operating temperature range (°C) |
-40 to 125 |

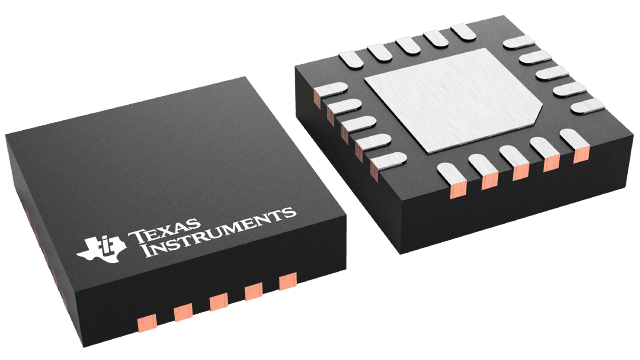

WQFN (RUK)-20-9 mm² 3 x 3
The TPS51215A is a single-phase, D-CAP2™ synchronous buck controller with a 2-bit VID input supporting 0 V and three other independent externally programmable output voltage levels, where full external programmability of the voltage level, step setting and voltage-change slew rate is desired. It is used for Intel IMVP8/9 applications where multiple voltage levels are desired.
The TPS51215A supports all POS/SPCAP and/or all ceramic MLCC output capacitor options in applications where remote sense is a requirement. Tight DC load regulation is achieved through external programmable integrator capacitor. The TPS51215A provides full protection suite, including OVP, OCL, 5-V UVLO and thermal shutdown. It supports the conversion voltage up to 28 V, and output voltages adjustable from 0.5 V to 2 V.
The TPS51215A is available in the 3 mm × 3 mm, QFN, 0.4-mm pitch package and is specified from –40°C to 125°C.
