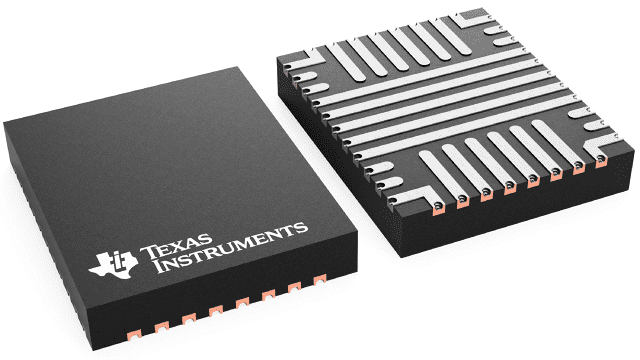

TPS25763-Q1
  • TPS25763-Q1
  • TPS25763-Q1

TPS25763-Q1

ACTIVE

Automotive single-port USB Type-C® PD controller with buck-boost regulator and DisplayPort Alt mode

Texas Instruments TPS25763-Q1 Product Info

1 April 2026 0

Parameters

Function

Type-C

Type

DC/DC converter, PD controller

Power role

DRP

Rating

Automotive

Internal power path

20 V 3 A

Data role

DRD

Alternate mode

Yes

External power-path control

No

Dead battery support

No

Operating temperature range (°C)

-40 to 125

Package

VQFN-HR (RQL)-29-30 mm² 6 x 5

Features

  • AEC-Q100 qualified with the following results:
    • Device temperature grade 1: –40°C to +125°C ambient operating temperature range
    • Device HBM ESD classification level 2
    • Device CDM ESD classification level C2b
    • Enhanced connector pin ESD protection
  • USB power delivery (PD) controller with programmable power supply (PPS) support
    • Wide VIN: 5.5V to 18V (40V maximum)
    • Integrated buck-boost with 4 power switches supporting up to 65W USB PD output power
    • VBUS output: 3.3–21V with ±20mV step size
    • IBUS output: 0–3A with ±50mA current limit step size
    • Alternate mode support
      • DisplayPort™
    • VBUS short circuit to VBAT and GND protection
    • VBUS cable droop compensation
    • MFi overcurrent protection
    • Switching frequency: 300, 400, 450kHz
    • DC/DC sync in/out with dithering
  • USB port configuration options
    • 1 USB-PD port (TPS25762-Q1)
    • 1 USB-PD port with DisplayPort™ over USB-C™ (DP alternate mode) (TPS25763-Q1)
    • 2 USB-PD ports (TPS25772-Q1)
  • Compliant to USB
    • USB Type-C power delivery Rev 3.1
      • TPS25762-Q1: USB–IF certification with PPS, TID: 9509
      • TPS25772-Q1: USB–IF certification with PPS, TID: 9161
      • CC logic, VCONN source and discharge
      • USB cable polarity detection
    • Battery charging specification v1.2 (BC1.2)
      • DCP: dedicated charging port
  • Legacy fast charging
    • 2.7V divider-3 mode
    • 1.2V divider mode
    • high voltage DCP Protocol
  • Microcontroller core allows
  • Short to VBUS and VBAT protection
    • VBUS
    • Px_ DP and Px_DM
    • Px_CC1 and Px_CC2
  • HotRod™ QFN package with wettable flank
  • AEC-Q100 qualified with the following results:
    • Device temperature grade 1: –40°C to +125°C ambient operating temperature range
    • Device HBM ESD classification level 2
    • Device CDM ESD classification level C2b
    • Enhanced connector pin ESD protection
  • USB power delivery (PD) controller with programmable power supply (PPS) support
    • Wide VIN: 5.5V to 18V (40V maximum)
    • Integrated buck-boost with 4 power switches supporting up to 65W USB PD output power
    • VBUS output: 3.3–21V with ±20mV step size
    • IBUS output: 0–3A with ±50mA current limit step size
    • Alternate mode support
      • DisplayPort™
    • VBUS short circuit to VBAT and GND protection
    • VBUS cable droop compensation
    • MFi overcurrent protection
    • Switching frequency: 300, 400, 450kHz
    • DC/DC sync in/out with dithering
  • USB port configuration options
    • 1 USB-PD port (TPS25762-Q1)
    • 1 USB-PD port with DisplayPort™ over USB-C™ (DP alternate mode) (TPS25763-Q1)
    • 2 USB-PD ports (TPS25772-Q1)
  • Compliant to USB
    • USB Type-C power delivery Rev 3.1
      • TPS25762-Q1: USB–IF certification with PPS, TID: 9509
      • TPS25772-Q1: USB–IF certification with PPS, TID: 9161
      • CC logic, VCONN source and discharge
      • USB cable polarity detection
    • Battery charging specification v1.2 (BC1.2)
      • DCP: dedicated charging port
  • Legacy fast charging
    • 2.7V divider-3 mode
    • 1.2V divider mode
    • high voltage DCP Protocol
  • Microcontroller core allows
  • Short to VBUS and VBAT protection
    • VBUS
    • Px_ DP and Px_DM
    • Px_CC1 and Px_CC2
  • HotRod™ QFN package with wettable flank

Description

The TPS25763-Q1 is a fully integrated USB Type-C® Power Delivery (PD) solution with integrated Buck-Boost converter and DisplayPort™ Alternate (Alt) Mode over USB-C® for automotive single USB port applications. Functionality includes: integrated Buck-Boost converter with 4 power switches; an ARM Cortex-M0; USB port controller with Type-C cable plug and orientation detection; DisplayPort Alt Mode; USB Battery Charging Specification Version 1.2 (BC1.2) detection; USB Endpoint PHY; device power management and supervisory circuitry; and connector pin over-voltage and short-circuit protection.

An intelligent System Power Management (SPM) Engine maximizes delivered USB power while protecting the system from automotive battery transient and over-temperature conditions.

Device configuration settings are selected through an intuitive graphical user interface (GUI).

The TPS25763-Q1 is a fully integrated USB Type-C® Power Delivery (PD) solution with integrated Buck-Boost converter and DisplayPort™ Alternate (Alt) Mode over USB-C® for automotive single USB port applications. Functionality includes: integrated Buck-Boost converter with 4 power switches; an ARM Cortex-M0; USB port controller with Type-C cable plug and orientation detection; DisplayPort Alt Mode; USB Battery Charging Specification Version 1.2 (BC1.2) detection; USB Endpoint PHY; device power management and supervisory circuitry; and connector pin over-voltage and short-circuit protection.

An intelligent System Power Management (SPM) Engine maximizes delivered USB power while protecting the system from automotive battery transient and over-temperature conditions.

Device configuration settings are selected through an intuitive graphical user interface (GUI).
