Texas Instruments TPS22965 Product Info

Parameters

Imax (A)	6
Vin (max) (V)	5.7
Vin (min) (V)	0.8
Number of channels	1
Features	Inrush current control, Quick output discharge
Quiescent current (Iq) (typ) (µA)	50
Soft start	Adjustable Rise Time
Rating	Catalog
Ron (typ) (mΩ)	16
Shutdown current (ISD) (typ) (µA)	2
Current limit type	None
Function	Inrush current control
FET	Internal
Operating temperature range (°C)	-40 to 105
Device type	Load switches

Package

WSON (DSG)-8-4 mm² 2 x 2

Features

Integrated Single Channel Load Switch
Input Voltage Range: 0.8 V to 5.7 V
Ultra-Low On Resistance (R_ON)
- R_ON = 16 mΩ at VIN = 5 V (VBIAS = 5 V)
- R_ON = 16 mΩ at VIN = 3.6 V (VBIAS = 5 V)
- R_ON = 16 mΩ at VIN = 1.8 V (VBIAS = 5 V)
6-A Maximum Continuous Switch Current
Low Quiescent Current (50 µA)
Low Control Input Threshold Enables Use of
1.2-, 1.8-, 2.5-, and 3.3-V Logic
Configurable Rise Time
Quick Output Discharge (QOD) (Optional)
SON 8-pin Package With Thermal Pad
ESD Performance Tested per JESD 22
- 2000-V HBM and 1000-V CDM

Integrated Single Channel Load Switch
Input Voltage Range: 0.8 V to 5.7 V
Ultra-Low On Resistance (R_ON)
- R_ON = 16 mΩ at VIN = 5 V (VBIAS = 5 V)
- R_ON = 16 mΩ at VIN = 3.6 V (VBIAS = 5 V)
- R_ON = 16 mΩ at VIN = 1.8 V (VBIAS = 5 V)
6-A Maximum Continuous Switch Current
Low Quiescent Current (50 µA)
Low Control Input Threshold Enables Use of
1.2-, 1.8-, 2.5-, and 3.3-V Logic
Configurable Rise Time
Quick Output Discharge (QOD) (Optional)
SON 8-pin Package With Thermal Pad
ESD Performance Tested per JESD 22
- 2000-V HBM and 1000-V CDM

Description

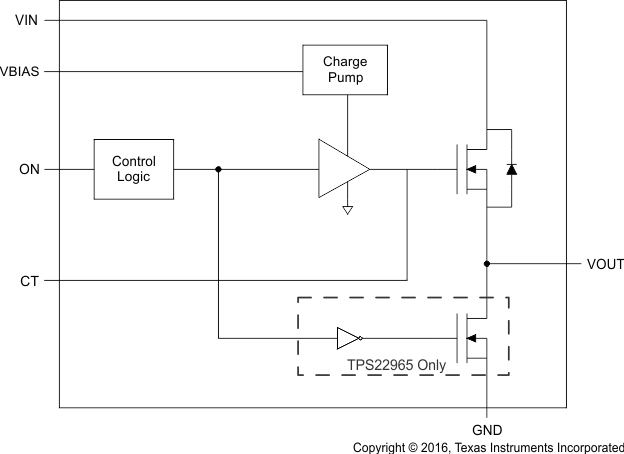

The TPS22965x is a single channel load switch that provides configurable rise time to minimize inrush current. The device contains an N-channel MOSFET that can operate over an input voltage range of 0.8 V to 5.7 V and can support a maximum continuous current of 6 A. The switch is controlled by an on and off input (ON), which is capable of interfacing directly with low-voltage control signals. In the TPS22965, a 225-Ω on-chip load resistor is added for quick output discharge when switch is turned off.

The TPS22965x is available in a small, space-saving 2-mm × 2-mm 8-pin SON package (DSG) with integrated thermal pad allowing for high power dissipation. The device is characterized for operation over the free-air temperature range of –40°C to +105°C.

The TPS22965x is a single channel load switch that provides configurable rise time to minimize inrush current. The device contains an N-channel MOSFET that can operate over an input voltage range of 0.8 V to 5.7 V and can support a maximum continuous current of 6 A. The switch is controlled by an on and off input (ON), which is capable of interfacing directly with low-voltage control signals. In the TPS22965, a 225-Ω on-chip load resistor is added for quick output discharge when switch is turned off.

The TPS22965x is available in a small, space-saving 2-mm × 2-mm 8-pin SON package (DSG) with integrated thermal pad allowing for high power dissipation. The device is characterized for operation over the free-air temperature range of –40°C to +105°C.
