ACTIVE
Product type |
Fixed current limit, Power switch |
Rating |
Catalog |
Continuous current (max) (A) |
1.5 |
Current limit (A) |
2.15 |
Number of switches |
1 |
Enable |
Active High |
Vin (max) (V) |
5.5 |
Vin (min) (V) |
4.5 |
Operating temperature range (°C) |
-40 to 125 |
Current limit accuracy at 1 A |
0.2 |

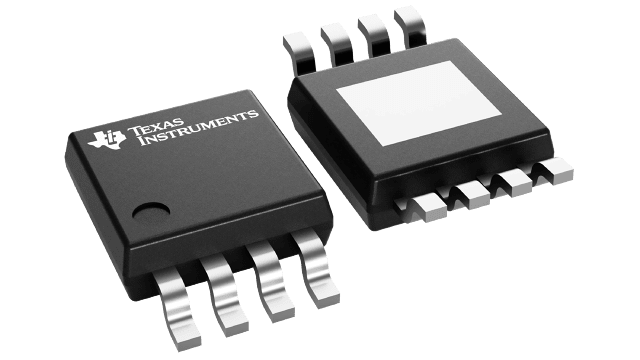

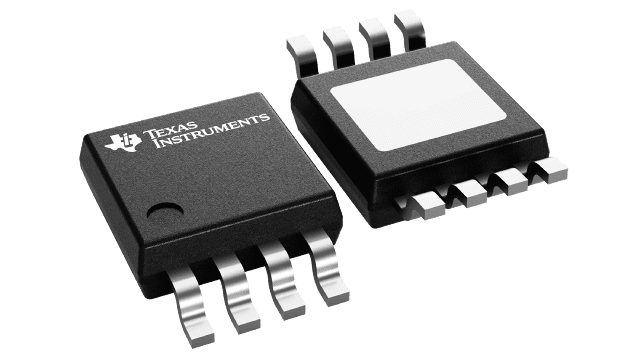

HVSSOP (DGN)-8-14.7 mm² 3 x 4.9

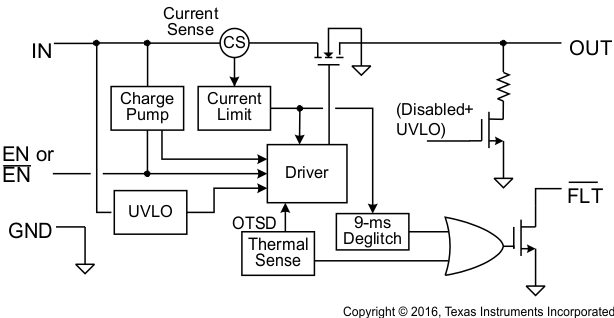

The TPS20xxC and TPS20xxC-2 power-distribution switch family is intended for applications, such as USB, where heavy capacitive loads and short circuits are likely to be encountered. This family offers multiple devices with fixed current-limit thresholds for applications from 0.5 A to 2 A.
The TPS20xxC and TPS20xxC-2 family limits the output current to a safe level by operating in a constant-current mode when the output load exceeds the current limit threshold. This provides a predictable fault current under all conditions. The fast overload response time eases the burden on the main 5-V supply to provide regulated power when the output is shorted. The power-switch rise and fall times are controlled to minimize current surges during turnon and turnoff.
