OPA4171

ACTIVE

Quad, 36-V, 3-MHz, low-power operational amplifier

Texas Instruments OPA4171 Product Info

1 April 2026 3

Parameters

Number of channels	4
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)	36
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)	2.7
Rail-to-rail	In to V-, Out
GBW (typ) (MHz)	3
Slew rate (typ) (V/µs)	1.5
Vos (offset voltage at 25°C) (max) (mV)	1.8
Iq per channel (typ) (mA)	0.475
Vn at 1 kHz (typ) (nV√Hz)	14
Rating	Catalog
Operating temperature range (°C)	-40 to 125
Offset drift (typ) (µV/°C)	0.3
Features	EMI Hardened
Input bias current (max) (pA)	15
CMRR (typ) (dB)	120
Iout (typ) (A)	0.025
Architecture	CMOS
Input common mode headroom (to negative supply) (typ) (V)	-0.1
Input common mode headroom (to positive supply) (typ) (V)	-2
Output swing headroom (to negative supply) (typ) (V)	0.03
Output swing headroom (to positive supply) (typ) (V)	-0.35

Package

SOIC (D)-14-51.9 mm² 8.65 x 6

Features

Supply range: 2.7V to 36V, ±1.35V to ±18V
Low noise: 14nV/√ Hz
Low offset drift: ±0.3µV/°C (Typical)
RFI filtered inputs
Input range includes the negative supply
Input range operates to positive supply
Rail-to-rail output
Gain bandwidth: 3MHz
Low quiescent current: 475µA per amplifier
High common-mode rejection: 120dB (typical)
Low-input bias current: 8pA

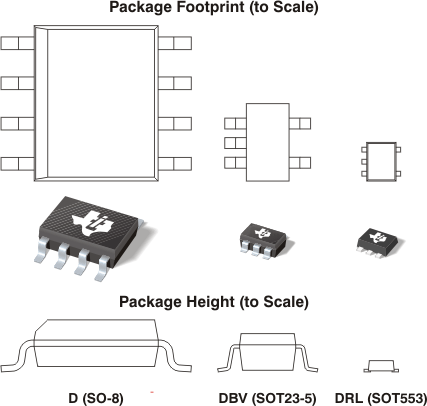

Industry-standard packages:
- 5-pin SOT-23
- 8-pin SOIC
- 14-pin TSSOP
microPackages:
- Single in SOT-553
- Dual in VSSOP-8

Supply range: 2.7V to 36V, ±1.35V to ±18V
Low noise: 14nV/√ Hz
Low offset drift: ±0.3µV/°C (Typical)
RFI filtered inputs
Input range includes the negative supply
Input range operates to positive supply
Rail-to-rail output
Gain bandwidth: 3MHz
Low quiescent current: 475µA per amplifier
High common-mode rejection: 120dB (typical)
Low-input bias current: 8pA
Industry-standard packages:
- 5-pin SOT-23
- 8-pin SOIC
- 14-pin TSSOP
microPackages:
- Single in SOT-553
- Dual in VSSOP-8

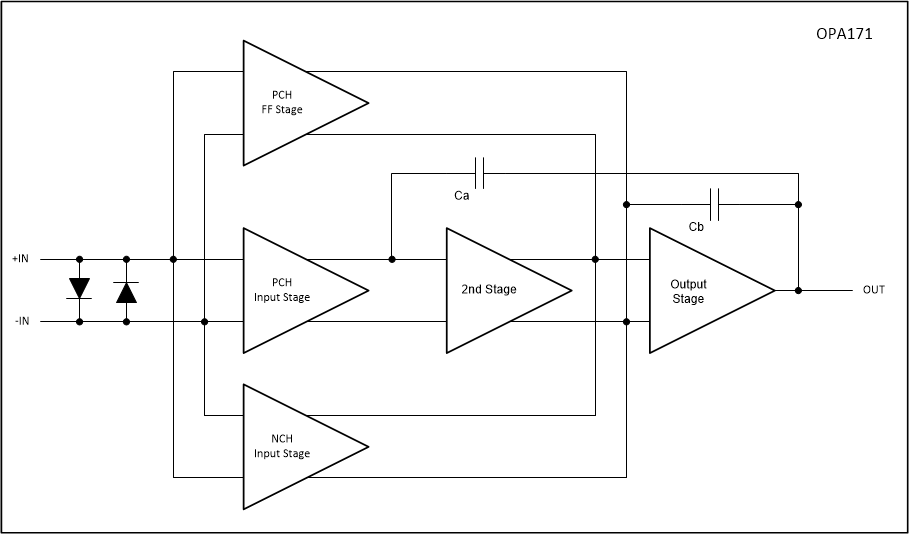

Description

The OPA171, OPA2171, and OPA4171 (OPAx171) are a family of 36V, single-supply, low-noise operational amplifiers with the ability to operate on supplies ranging from 2.7V (±1.35V) to 36V (±18V). These devices are available in micro-packages and offer low offset, drift, and bandwidth with low quiescent current. The single, dual, and quad versions all have identical specifications for maximum design flexibility.

Unlike most operational amplifiers, which are specified at only one supply voltage, the OPAx171 family is specified from 2.7V to 36V. Input signals beyond the supply rails do not cause phase reversal. The OPAx171 family is stable with capacitive loads up to 300pF. The input can operate 100mV below the negative rail and within 2V of the top rail during normal operation. These devices can operate with full rail-to-rail input 100mV beyond the top rail, but with reduced performance within 2V of the top rail.

The OPAx171 series of operational amplifiers are specified from –40°C to +125°C.
