ACTIVE
Audio input type |
Analog Input |
Architecture |
Class-AB |
Speaker channels (max) |
Stereo |
Control interface |
GPIO |
Output power (W) |
2 |
Power stage supply (max) (V) |
5.5 |
Power stage supply (min) (V) |
4.5 |
THD + N at 1 kHz (%) |
0.75 |
Load (min) (Ω) |
3 |
Analog supply voltage (min) (V) |
2.5 |
Analog supply voltage (max) (V) |
5.5 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |

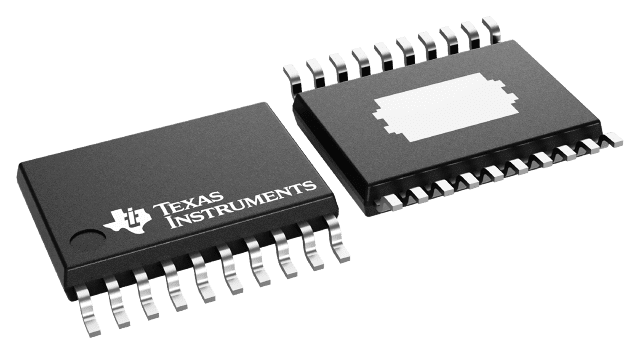

HTSSOP (PWP)-20-41.6 mm² 6.5 x 6.4
Load From 5-V Supply
The TPA6017A2 is a stereo audio power amplifier in a 20-pin TSSOP thermally enhanced package capable of delivering 2 W of continuous RMS power per channel into 3- loads. Internal gain control minimizes the number of external components needed, simplifying the design, and freeing up board space for other features.
Amplifier gain is internally configured and controlled by way of two terminals (GAIN0 and GAIN1). Gain settings of 6 dB, 10 dB, 15.6 dB, and 21.6 dB (inverting) are provided.
