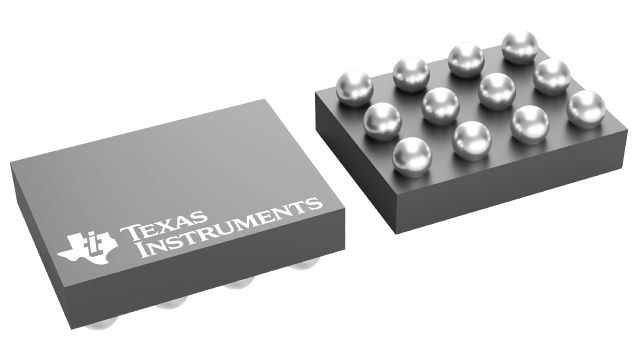

TPA2080D1
  • TPA2080D1
  • TPA2080D1

TPA2080D1

ACTIVE

2.2-W, mono, analog input Class-D audio amp with integrated Class-G boost & 20 dB fixed gain

Texas Instruments TPA2080D1 Product Info

1 April 2026 3

Parameters

Audio input type

Analog Input

Architecture

Class-D Boosted

Speaker channels (max)

Mono

Iq per channel (typ) (mA)

2

Control interface

GPIO

Output power (W)

2.2

Power stage supply (max) (V)

6.4

Power stage supply (min) (V)

2.5

THD + N at 1 kHz (%)

0.07

Load (min) (Ω)

4

Analog supply voltage (min) (V)

2.5

Analog supply voltage (max) (V)

5.2

Rating

Catalog

Operating temperature range (°C)

-40 to 85

Package

DSBGA (YZG)-12-3.9375 mm² 2.25 x 1.75

Features

  • 2.2 W into 4-Ω Load from 3.6-V Supply
    (1% THD+N)
  • Integrated Class-G Boost Converter
    • Increases Efficiency at Low Output Power
  • Low Quiescent Current of 3.5 mA from 3.6 V
  • Thermal and Short-Circuit Protection With Auto
    Recovery
  • 20-dB Fixed Gain
  • Available in 1.53-mm × 1.98-mm, 0.5-mm pitch
    12-ball WCSP (DSBGA) Package
  • 2.2 W into 4-Ω Load from 3.6-V Supply
    (1% THD+N)
  • Integrated Class-G Boost Converter
    • Increases Efficiency at Low Output Power
  • Low Quiescent Current of 3.5 mA from 3.6 V
  • Thermal and Short-Circuit Protection With Auto
    Recovery
  • 20-dB Fixed Gain
  • Available in 1.53-mm × 1.98-mm, 0.5-mm pitch
    12-ball WCSP (DSBGA) Package

Description

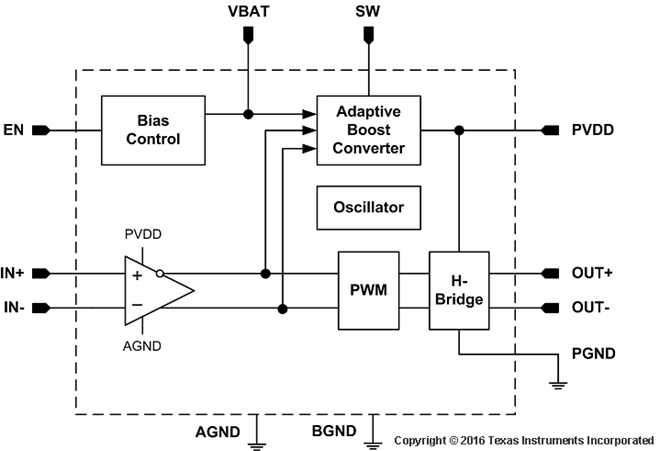

The TPA2080D1 device is a high-efficiency Class-D audio power amplifier with an integrated Class-G boost converter that enhances efficiency at low output power. It drives up to 2.2 W into an 4-Ω speaker (1% THD+N). With 85% typical efficiency, the TPA2080D1 helps extend battery life when playing audio.

The built-in boost converter generates a 5.75-V supply voltage for the Class-D amplifier when high output power is required. This provides a louder audio output than a stand-alone amplifier directly connected to the battery. During low audio output power periods, the boost converter deactivates and connects VBAT directly to the Class-D amplifier supply, PVDD. This improves overall efficiency.

The TPA2080D1 has an integrated low-pass filter to improve the RF rejection and reduce DAC out-of-band noise, increasing the signal-to-noise ratio (SNR).

The TPA2080D1 is available in a space-saving 1.53-mm × 1.982-mm, 0.5-mm pitch WCSP package (YZG).
