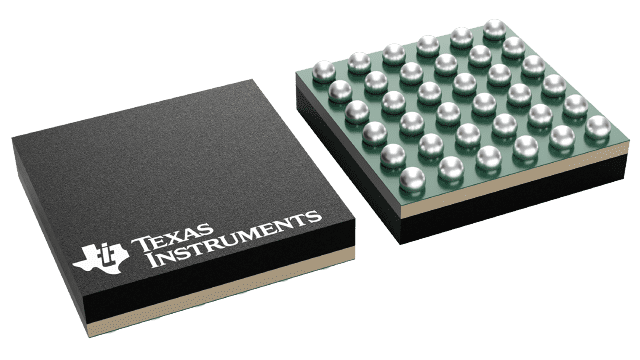

TMUX646
  • TMUX646
  • TMUX646

TMUX646

ACTIVE

6-GHz, 5-V, 2:1 (SPDT) 10-channel MIPI switch with 1.8-V logic support

Texas Instruments TMUX646 Product Info

1 April 2026 4

Parameters

Protocols

MIPI

Configuration

2:1 SPDT

Number of channels

10

Bandwidth (MHz)

6000

Supply voltage (max) (V)

5.5

Supply voltage (min) (V)

1.5

Ron (typ) (mΩ)

6000

Input/output voltage (min) (V)

0

Input/output voltage (max) (V)

3.6

Supply current (typ) (µA)

0.1

ESD HBM (typ) (kV)

6

Operating temperature range (°C)

-40 to 85

Crosstalk (dB)

-40

ESD CDM (kV)

2

Input/output continuous current (max) (mA)

35

COFF (typ) (pF)

1.5

CON (typ) (pF)

1.5

Off isolation (typ) (dB)

-20

OFF-state leakage current (max) (µA)

0.5

Propagation delay time (µs)

0.04

Ron (max) (mΩ)

10000

RON flatness (typ) (Ω)

0.1

VIH (min) (V)

1

VIL (max) (V)

0.4

Rating

Catalog

Package

NFBGA (ZEC)-36-6.0025 mm² 2.45 x 2.45

Features

  • Supply range of 1.5 V to 5.5 V
  • 10-Channel 2:1 bidirectional switch
  • Supports MIPI CSI/DSI, SATA, LVDS, RGMII, DDR, ethernet interfaces
  • Powered-off protection: I/Os Hi-Z when VDD = 0 V
  • Low RON: 6-Ω typical
  • High bandwidth : 6 GHz
  • Ultra low crosstalk: ­-40 dB
  • Low power disable mode
  • 1.2 V logic compatible
  • Bidirectional signal path
  • ESD protection:
    • 6-kV human body model (HBM)
    • 2-kV human body model (CDM)
  • Supply range of 1.5 V to 5.5 V
  • 10-Channel 2:1 bidirectional switch
  • Supports MIPI CSI/DSI, SATA, LVDS, RGMII, DDR, ethernet interfaces
  • Powered-off protection: I/Os Hi-Z when VDD = 0 V
  • Low RON: 6-Ω typical
  • High bandwidth : 6 GHz
  • Ultra low crosstalk: ­-40 dB
  • Low power disable mode
  • 1.2 V logic compatible
  • Bidirectional signal path
  • ESD protection:
    • 6-kV human body model (HBM)
    • 2-kV human body model (CDM)

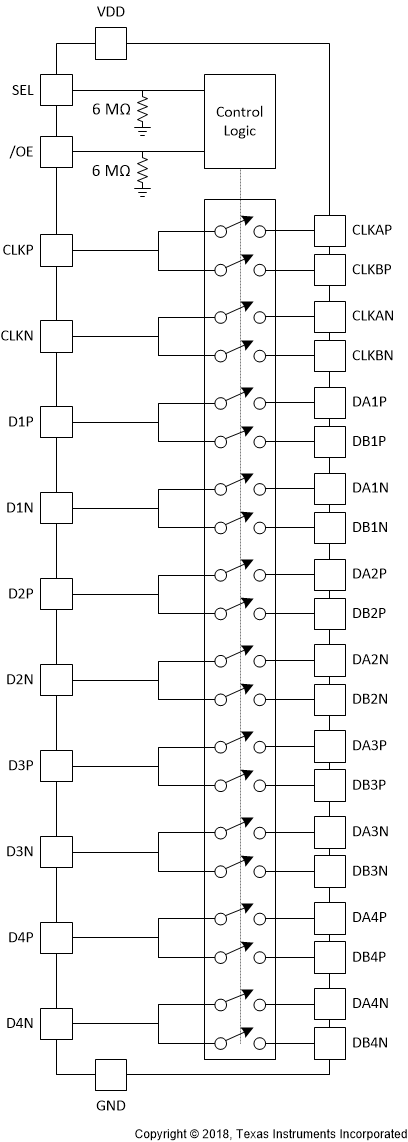

Description

The TMUX646 is an optimized 10-channel (5 differential) single-pole, double-throw bi-directional switch for use in high speed applications. The TMUX646 is designed to facilitate multiple MIPI compliant devices to connect to a single CSI/DSI, C-PHY/D-PHY module. The device also supports SATA, SAS, MIPI DSI/CSI, LVDS, RGMII, DDR and Ethernet interfaces.

The device has a bandwidth of 6 GHz, low channel-to-channel skew with little signal degradation, and wide margins to compensate for layout losses. The device’s low current consumption meets the needs of low power applications, including mobile phones and other personal electronics.
