ACTIVE
Setpoint type |
Resistor Programmable |
Setpoint value (°C) |
-40 to 125 |
Operating temperature range (°C) |
-40 to 125 |
Accuracy over temp range (max) (°C) |
2 |
Sensor gain (mV/°C) |
10 |
Output type |
Open drain |
Supply voltage (min) (V) |
1.8 |
Supply voltage (max) (V) |
18 |
Supply current (typ) (µA) |
110 |
Number of comparator channels |
1 |
Features |
Built-in hysteresis |
Rating |
Catalog |
Interface type |
Analog output, Switch |
SOT-23 (DBV)-6-8.12 mm² 2.9 x 2.8

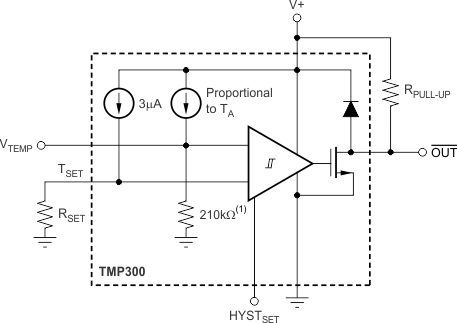

The TMP300 is a low-power, resistor-programmable, digital output temperature switch. The device allows a threshold point to be set by adding an external resistor. Two levels of hysteresis are available. The TMP300 has a VTEMP analog output that can be used as a testing point or in temperature-compensation loops.
Available in two micropackages with proven thermal characteristics, low current consumption, and a supply voltage as low as 1.8 V, the TMP300 is designed for power-sensitive systems that require simple and reliable thermal management.
