Texas Instruments TMP1826 Product Info

Parameters

Local sensor accuracy (max)	0.2, 0.3
Type	Local
Operating temperature range (°C)	-55 to 150
Supply voltage (min) (V)	1.7
Interface type	Single-Wire
Supply voltage (max) (V)	5.5
Features	2-kb EEPROM, 64-bit unique ID, ALERT, GPIO, NIST traceable
Supply current (max) (µA)	154
Temp resolution (max) (bps)	16
Remote channels (#)	0
Addresses	256
Rating	Catalog
TI functional safety category	Functional Safety-Capable

Package

VSSOP (DGK)-8-14.7 mm² 3 x 4.9

Features

1-Wire interface with multi-drop shared bus and cyclic redundancy check (CRC)
Bus powered with operating voltage: 1.7V to 5.5V
IEC 61000-4-2 ESD for 8-kV contact discharge
Functional Safety-Capable
- Documentation available to aid functional safety system design
High-accuracy digital temperature sensor (WSON package)
- ±0.2°C (maximum) from +10°C to +45°C
- ±0.3°C (maximum) from –40°C to +105°C
- ±0.4°C (maximum) from –55°C to +150°C
High-accuracy digital temperature sensor (VSSOP package)
- ±0.3°C (maximum) from –20°C to +85°C
- ±0.5°C (maximum) from –55°C to +150°C
Temperature measurement current: 94µA
Shutdown current: 1.3µA
16-bit temperature resolution: 7.8125 m°C (1 LSB)
Fast data rates of 90kbps in overdrive speed
Flexible user programmable short address modes for faster device address
2Kb EEPROM features:
- Write operation in 64-bit block size
- Continuous read mode
- Read with write protection with 256-bit page size
- Programming current: 178µA
NIST traceable factory-programmed non erasable 64-bit identification number for device addressing
Four configurable open-drain digital input-output and temperature alert

1-Wire interface with multi-drop shared bus and cyclic redundancy check (CRC)
Bus powered with operating voltage: 1.7V to 5.5V
IEC 61000-4-2 ESD for 8-kV contact discharge
Functional Safety-Capable
- Documentation available to aid functional safety system design
High-accuracy digital temperature sensor (WSON package)
- ±0.2°C (maximum) from +10°C to +45°C
- ±0.3°C (maximum) from –40°C to +105°C
- ±0.4°C (maximum) from –55°C to +150°C
High-accuracy digital temperature sensor (VSSOP package)
- ±0.3°C (maximum) from –20°C to +85°C
- ±0.5°C (maximum) from –55°C to +150°C
Temperature measurement current: 94µA
Shutdown current: 1.3µA
16-bit temperature resolution: 7.8125 m°C (1 LSB)
Fast data rates of 90kbps in overdrive speed
Flexible user programmable short address modes for faster device address
2Kb EEPROM features:
- Write operation in 64-bit block size
- Continuous read mode
- Read with write protection with 256-bit page size
- Programming current: 178µA
NIST traceable factory-programmed non erasable 64-bit identification number for device addressing
Four configurable open-drain digital input-output and temperature alert

Description

The TMP1826 is a high-accuracy, 1-Wire® compatible digital output temperature sensor with integrated 2Kb EEPROM and a wide operating temperature range from –55°C to +150°C. The TMP1826 provides a high accuracy of ±0.1°C (typical)/±0.2°C (maximum) across the temperature range of +10°C to +45°C. Each device comes with a factory programmed 64-bit unique identification number for addressing and NIST traceability. The TMP1826 supports both standard speed for legacy application and overdrive mode with 90-kbps data rate for low latency communication across a wide voltage range of 1.7V to 5.5V.

In the simplest mode of operation, the TMP1826 1-Wire® interface, with an integrated 8kV IEC-61000-4-2 ESD protection on the data pin, requires only a single connection and a ground return in bus powered mode, which simplifies and reduces cost by reducing the number of wires and external protection components. Additionally, there is the VDD power pin also available for applications that need to have a dedicated power supply.

1-Wire® is a registered trademark of Maxim Integrated Products, Inc.

ELECTRONIC COMPONENTS
All In One Distributor

TMP1826

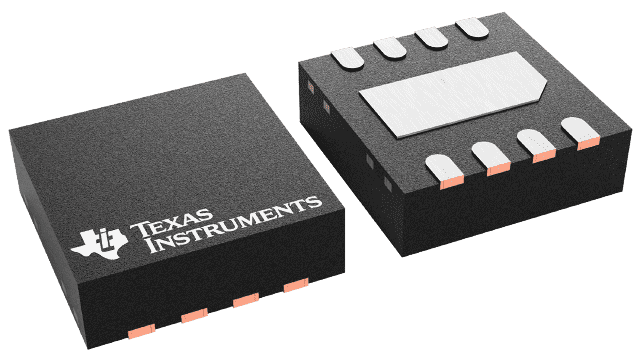

2Kbit EEPROM with integrated ±0.2°C temperature sensor, compatible with 1-Wire® protocol
