0
ACTIVE
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
16 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
2.7 |
Rail-to-rail |
In, Out |
GBW (typ) (MHz) |
11 |
Slew rate (typ) (V/µs) |
33 |
Vos (offset voltage at 25°C) (max) (mV) |
1 |
Iq per channel (typ) (mA) |
2.48 |
Vn at 1 kHz (typ) (nV√Hz) |
6.8 |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
TI functional safety category |
Functional Safety-Capable |
Offset drift (typ) (µV/°C) |
0.25 |
Features |
EMI Hardened, MUX Friendly |
CMRR (typ) (dB) |
110 |
Iout (typ) (A) |
0.073 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
0 |
Input common mode headroom (to positive supply) (typ) (V) |
0 |
Output swing headroom (to negative supply) (typ) (V) |
0.025 |
Output swing headroom (to positive supply) (typ) (V) |
-0.025 |
SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8

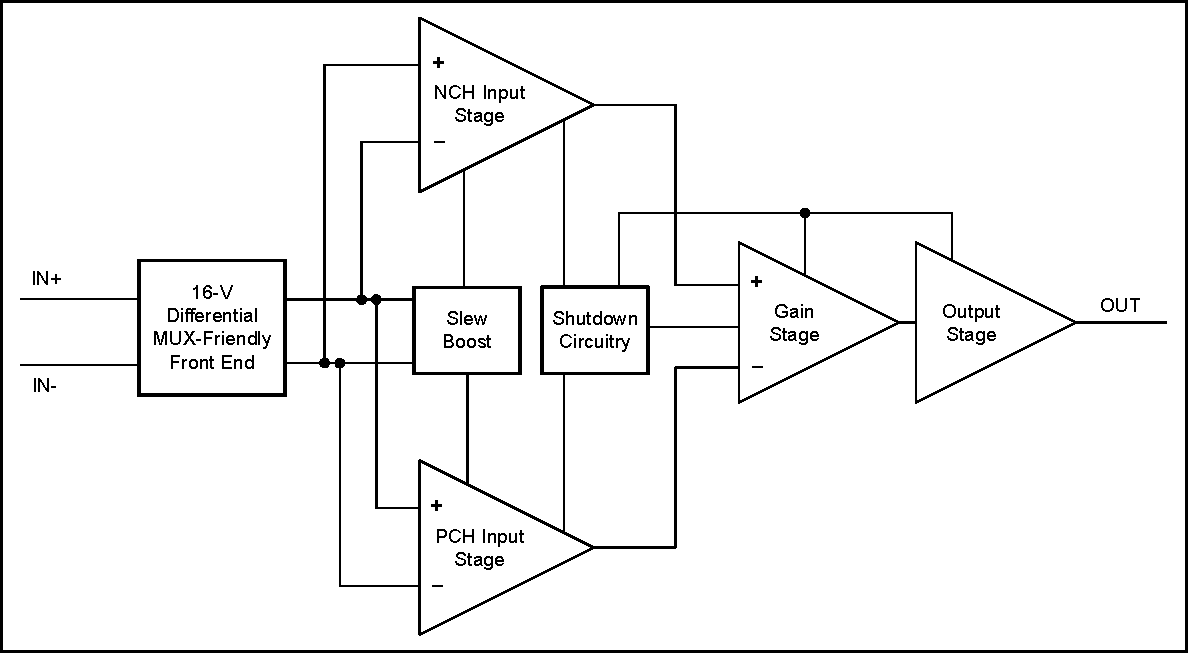

The TLV916x-Q1 family (TLV9161-Q1, TLV9162-Q1, and TLV9164-Q1) is a family of 16V, general-purpose automotive operational amplifiers. These devices offer exceptional DC precision and AC performance, including rail-to-rail input or output, low offset (±210µV, typical), low-offset drift (±0.25µV/°C, typical), and low noise (6.8nV/√Hz at 1kHz, 4.2nV/√Hz at 10kHz).
Features such as wide differential input voltage range, high short-circuit current (±73mA), and high slew rate (33V/µs) make the TLV916x-Q1 a flexible, robust, and high-performance op amp for automotive applications.
The TLV916x-Q1 family of op amps is available in standard packages and is specified from –40°C to 125°C.
