0
ACTIVE
Number of channels |
2 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
15.5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
4.75 |
Rail-to-rail |
In to V-, Out |
GBW (typ) (MHz) |
1.4 |
Slew rate (typ) (V/µs) |
1.1 |
Vos (offset voltage at 25°C) (max) (mV) |
9 |
Iq per channel (typ) (mA) |
0.38 |
Vn at 1 kHz (typ) (nV√Hz) |
22 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
Offset drift (typ) (µV/°C) |
2.3 |

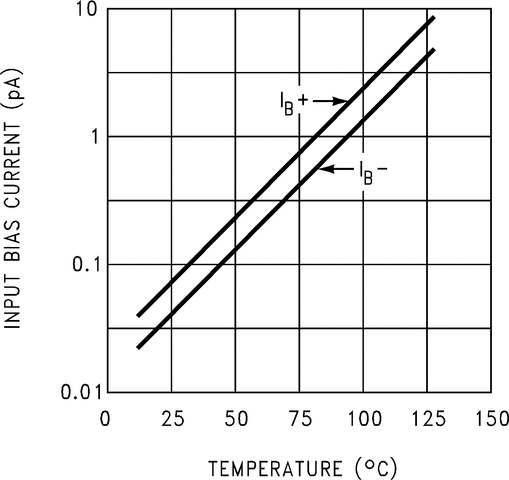

Input bias current (max) (pA) |
0.4 |
CMRR (typ) (dB) |
83 |
Iout (typ) (A) |
0.04 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.4 |
Input common mode headroom (to positive supply) (typ) (V) |
-1.9 |
Output swing headroom (to negative supply) (typ) (V) |
0.1 |
Output swing headroom (to positive supply) (typ) (V) |
-0.13 |
PDIP (P)-8-92.5083 mm² 9.81 x 9.43

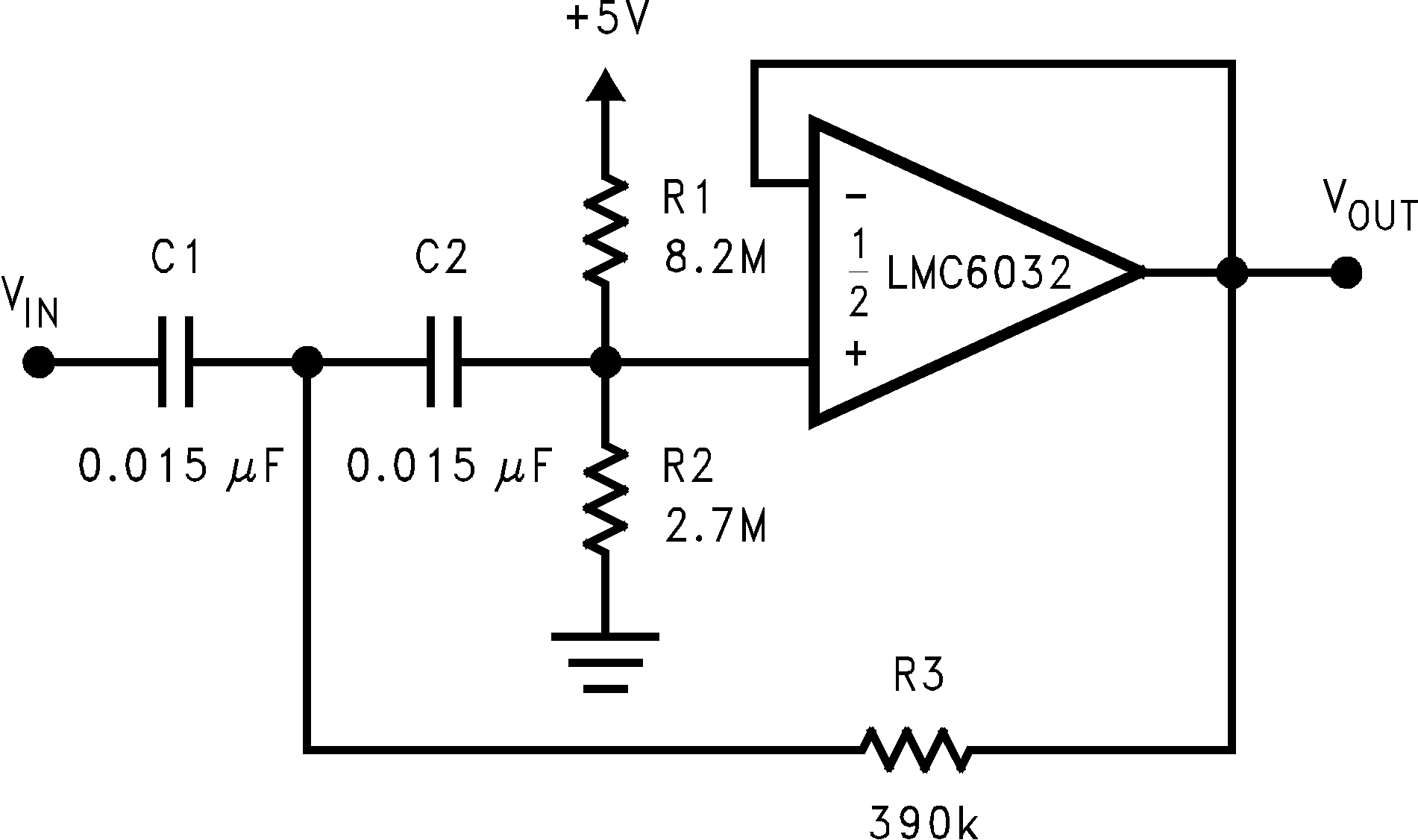

The dual LMC6032 and quad LMC6034 (LMC603x) are CMOS operational amplifiers that operate from either a single supply or dual supplies. Device performance features include an input common-mode range that reaches ground, low input bias current, and high voltage gain into realistic loads, such as 2kΩ and 600Ω.
This chip is built with TIs advanced CMOS process.
For higher-performance characteristics, see the OPA928.
