ACTIVE
Rating |
Catalog |
Vin (max) (V) |
6 |
Vin (min) (V) |
1.5 |
Iout (max) (A) |
1 |
Output options |
Adjustable Output, Dual output |
Vout (max) (V) |
5.5 |
Vout (min) (V) |
0.55 |
Noise (µVrms) |
53 |
PSRR at 100 KHz (dB) |
45 |
Iq (typ) (mA) |
0.025 |
Features |
Enable |
Thermal resistance θJA (°C/W) |
74.6 |
Load capacitance (min) (µF) |
1 |
Regulated outputs (#) |
2 |
Accuracy (%) |
1.5 |
Dropout voltage (Vdo) (typ) (mV) |
225 |
Operating temperature range (°C) |
-40 to 125 |

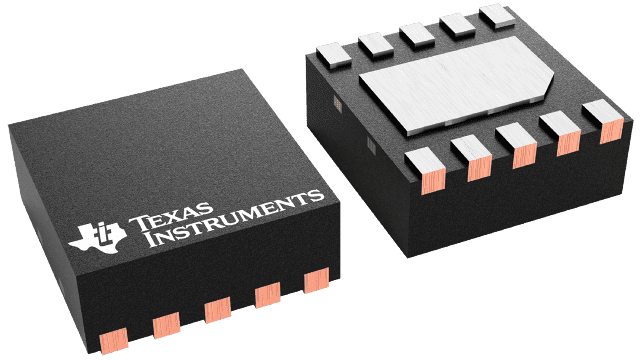

WSON (DSQ)-10-4 mm² 2 x 2

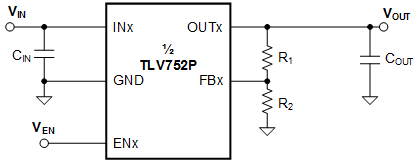

The TLV752 is a dual, adjustable, 1-A low-dropout (LDO) regulator. This device is available in a small, 10-pin, 2-mm × 2-mm WSON package and consumes 25-µA quiescent current while providing fast line and load transient response. The TLV752 features a low dropout of 225 mV that can help improve the overall power efficiency.
The TLV752 wide input-and-output voltage ranges, when combined with its output current capability in a small printed circuit board (PCB) footprint help support a wide variety of applications from sensor supplies, to auxiliary rails, and modern microcontrollers with lower core voltages.
The TLV752 is stable with small ceramic output capacitors, allowing for a small overall solution size. A precision band-gap and error amplifier provides high accuracy of 1.5% (max) over temperature. This device includes integrated thermal shutdown, current limit, active output-discharge, and undervoltage lockout (UVLO) features. The TLV752 has an internal fold-back current-limit to reduce thermal dissipation during short-circuit events.
