ACTIVE
Number of channels |
1 |
Output type |
Push-Pull |
Propagation delay time (µs) |
0.006 |
Vs (max) (V) |
5.5 |
Vs (min) (V) |
2.5 |
Rating |
Automotive |
Features |
Hysteresis, POR |
Iq per channel (typ) (mA) |
1 |
Vos (offset voltage at 25°C) (max) (mV) |
5 |
Rail-to-rail |
In |
Operating temperature range (°C) |
-40 to 125 |
Input bias current (±) (max) (nA) |
1 |
VICR (max) (V) |
5.7 |
VICR (min) (V) |
-0.2 |
TI functional safety category |
Functional Safety-Capable |

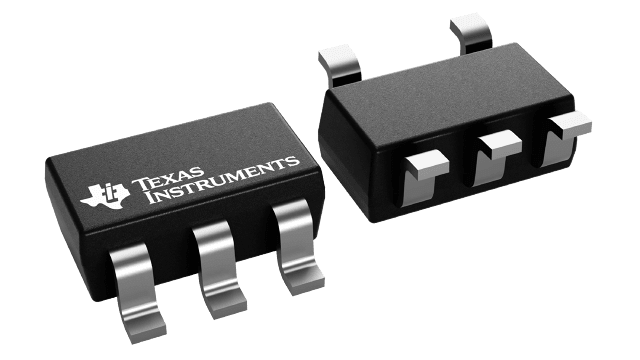

SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8
removed

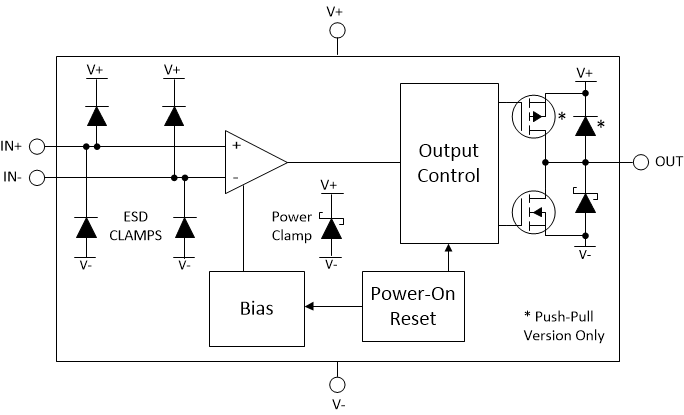

The TLV351x-Q1 is a family of 5V single and dual channel comparators with push-pull outputs. The family has an excellent speed-to-power combination with a propagation delay of 6ns and a full supply voltage range of 2.7V to 5.5V with a quiescent supply current of only 1mA per channel.
Likewise, the TLV351x-Q1 are conveniently available in standard leaded and leadless packages with features such as rail-to-rail inputs, low offset voltage, and large output drive current. These features along with fast response time make the comparators well-suited for current sensing, zero-cross detection, and a variety of other applications where precision and speed is critical.
All devices operate across the expanded temperature range of –40°C to 125°C.
