Texas Instruments TLC69627-Q1 Product Info

Parameters

Number of channels	48
Topology	Current Sink
Rating	Automotive
Operating temperature range (°C)	-40 to 125
Vin (min) (V)	3
Vin (max) (V)	5.5
Features	Adjacent-Pin Short Detection, CRC, Hybrid Dimming/Phase Shift, LED Open Detection, LED Short Detection, LED Short to Ground Detection, Local dimming

Package

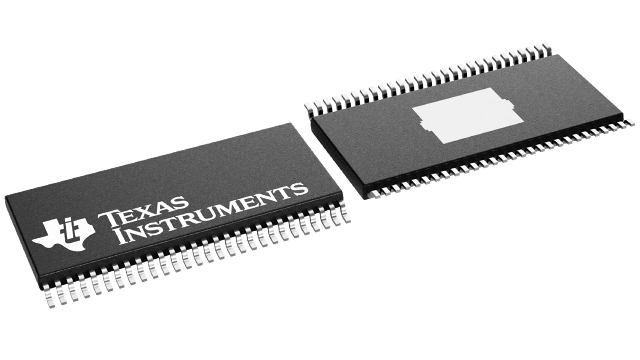

HTSSOP (DCA)-56-113.4 mm² 14 x 8.1

Features

AEC-Q100 qualified for automotive applications
- Grade 1: –40°C to 125°C ambient operating temperature
- Device HBM classification level H1C
- Device CDM classification level C4B
Functional Safety-Capable
- Documentation available to aid functional safety system design
48 integrated current sinks
- Programmable 16-bit PWM / hybrid dimming
- Programmable 7-bit analog dot correction (DC)
- Maximum output current, voltage: 60mA, 16V
Integrated 33MHz oscillator
- 16-bit PWM output in 500Hz
- > 20KHz refresh rate with enhanced spectrum (ES) PWM
High-speed communication
- Serial peripheral interface (SPI)
- Data rates up to 17Mbps
Power efficiency optimization
- Adaptive headroom voltage control (AHVC)
- Device power save mode (PSM)
EMI mitigation
- Interface: programmable buffer driving capability
- Current sinks: phase shifting / spread spectrum
Protection and diagnostic
- LED: open / short detection / health check
- Current sink: adjacent-pin short / health check
- Interface: CRC / command error / time-out error
- Device: under voltage / ISET out of range / thermal shutdown

AEC-Q100 qualified for automotive applications
- Grade 1: –40°C to 125°C ambient operating temperature
- Device HBM classification level H1C
- Device CDM classification level C4B
Functional Safety-Capable
- Documentation available to aid functional safety system design
48 integrated current sinks
- Programmable 16-bit PWM / hybrid dimming
- Programmable 7-bit analog dot correction (DC)
- Maximum output current, voltage: 60mA, 16V
Integrated 33MHz oscillator
- 16-bit PWM output in 500Hz
- > 20KHz refresh rate with enhanced spectrum (ES) PWM
High-speed communication
- Serial peripheral interface (SPI)
- Data rates up to 17Mbps
Power efficiency optimization
- Adaptive headroom voltage control (AHVC)
- Device power save mode (PSM)
EMI mitigation
- Interface: programmable buffer driving capability
- Current sinks: phase shifting / spread spectrum
Protection and diagnostic
- LED: open / short detection / health check
- Current sink: adjacent-pin short / health check
- Interface: CRC / command error / time-out error
- Device: under voltage / ISET out of range / thermal shutdown

Description

The TLC69627-Q1 is a LED driver with 48 constant current sink channels which could provide up to 16-bit individual pixel-level LED PWM control. The additional 7-bit dot correction (DC) is also implemented to each channel to control peak current. Each device shares data stream by serial peripheral interface (SPI) which supports up to 511 devices connection. The interface is software compatible with LED drivers in the same group which can be applied to different application scenarios based on LED current and total LED number.

To optimize overall systematic power efficiency, the device is equipped with adaptive headroom voltage control (AHVC) scheme to optimize headroom voltage across each channel and device. Only the OUT47 pin from the last device of daisy chain is required to be programmed as FB pin to optimize LED supply voltage from DC/DC.

The TLC69627-Q1 is equipped diagnostics for LED, current sink, communication and device.
