Texas Instruments TLC69612 Product Info

Parameters

Number of channels	16
Vin (min) (V)	3
Vin (max) (V)	5.5
Vout (max) (V)	20
LED current per channel (mA)	60
Topology	Current Sink
Features	Hybrid Dimming/Phase Shift, LED Open Detection, LED Short Detection, Local dimming, Serial interface
Operating temperature range (°C)	-40 to 85
Rating	Catalog

Package

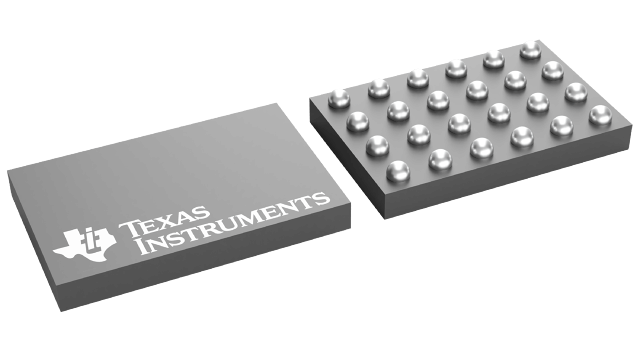

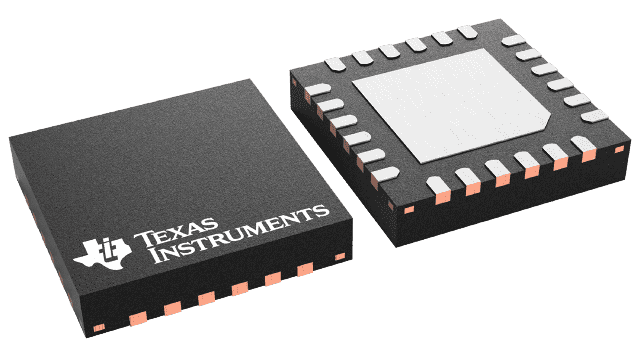

DSBGA (YBH)-24-3.768324 mm² 2.382 x 1.582

Features

Operating voltage VCC range: 3V to 5.5V
16 constant current sinks with high precision:
- Maximum output current / voltage:
  - 30mA / 20V: TLC69602/4/8
  - 60mA / 20V: TLC69612/4/8
  - 30mA / 50V: TLC69652/4/8
  - 60mA / 50V: TLC69662/4/8
- Device-to-device error: ±2% (typ.)
- Channel-to-channel error: ±2% (typ.)
Flexible dimming control:
- Global 8-bit Maximum Current (MC) setting
- Brightness resolution: up to 15-bit
- PWM / Hybrid control mode
High speed daisy chain interface:
- I/O voltage compatible with: 1.8V / 3.3V
- Data transfer rate: up to 20MHz
High system efficiency:
- Adaptive headroom voltage control (AHVC)
- Ultra-low device power consumption:
  - Standby mode: ICC ≤ 200µA
  - Normal mode: ICC ≤ 3.5mA
EMI enhancement:
- Programmable interface driving capability
- Integrated 4-phase-shifting schemes
Display quality improvement:
- Minimum brightness update latency
- Programmable black insertion
- Variable refresh rate (VRR) without flickering
Diagnostics:
- LED open / short detection for each zone
- Device thermal shutdown detection
- Report interface option:
  - UART and interrupt pin (INT)
  - Two-wire output: CLK_O and SOUT

Operating voltage VCC range: 3V to 5.5V
16 constant current sinks with high precision:
- Maximum output current / voltage:
  - 30mA / 20V: TLC69602/4/8
  - 60mA / 20V: TLC69612/4/8
  - 30mA / 50V: TLC69652/4/8
  - 60mA / 50V: TLC69662/4/8
- Device-to-device error: ±2% (typ.)
- Channel-to-channel error: ±2% (typ.)
Flexible dimming control:
- Global 8-bit Maximum Current (MC) setting
- Brightness resolution: up to 15-bit
- PWM / Hybrid control mode
High speed daisy chain interface:
- I/O voltage compatible with: 1.8V / 3.3V
- Data transfer rate: up to 20MHz
High system efficiency:
- Adaptive headroom voltage control (AHVC)
- Ultra-low device power consumption:
  - Standby mode: ICC ≤ 200µA
  - Normal mode: ICC ≤ 3.5mA
EMI enhancement:
- Programmable interface driving capability
- Integrated 4-phase-shifting schemes
Display quality improvement:
- Minimum brightness update latency
- Programmable black insertion
- Variable refresh rate (VRR) without flickering
Diagnostics:
- LED open / short detection for each zone
- Device thermal shutdown detection
- Report interface option:
  - UART and interrupt pin (INT)
  - Two-wire output: CLK_O and SOUT

Description

TLC696x2/4/8 devices are a family of LCD local dimming back-light driver compatible with TLC696x0 which is a scan MOSFET controller to achieve 2/4/8 time-multiplexing control. Each device integrates 16 constant current sinks with corresponding size of SRAM for brightness storage. The device connects to each other by two-wire serial interface in diasy chain topology and supports up to 1024 devices for more than 32,000 local dimming zones.

To optimize system efficiency, the device equips with adaptive headroom voltage control scheme to directly control DC/DC. Only the FB pin from last device in serial chain should be connected to DC/DC to achieve simplified system layout. The device also integrates minimum brightness update latency, black insertion and VRR features to improve display quality.

TLC696x2/4/8 has three error flags: LED open detection (LOD), LED short detection (LSD) and thermal shutdown detection (TSD) for diagnostic. The device implements two options for readback including UART/INT and SOUT/CLK_O which is programmable by register.

TLC696x2/4/8 devices are a family of LCD local dimming back-light driver compatible with TLC696x0 which is a scan MOSFET controller to achieve 2/4/8 time-multiplexing control. Each device integrates 16 constant current sinks with corresponding size of SRAM for brightness storage. The device connects to each other by two-wire serial interface in diasy chain topology and supports up to 1024 devices for more than 32,000 local dimming zones.

To optimize system efficiency, the device equips with adaptive headroom voltage control scheme to directly control DC/DC. Only the FB pin from last device in serial chain should be connected to DC/DC to achieve simplified system layout. The device also integrates minimum brightness update latency, black insertion and VRR features to improve display quality.

TLC696x2/4/8 has three error flags: LED open detection (LOD), LED short detection (LSD) and thermal shutdown detection (TSD) for diagnostic. The device implements two options for readback including UART/INT and SOUT/CLK_O which is programmable by register.
