Texas Instruments TLC69600 Product Info

Parameters

Vin (min) (V)	3
Vin (max) (V)	5.5
Features	LED Open Detection, LED Short Detection, Local dimming, Serial interface
Operating temperature range (°C)	-40 to 85
Rating	Catalog

Package

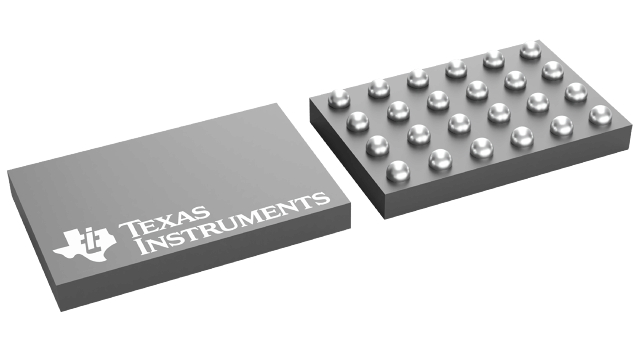

DSBGA (YBH)-24-3.768324 mm² 2.382 x 1.582

Features

Operating voltage VCC range: 3V to 5.5V
Flexible P-MOSFET driving options:
- Maximum driving current / sustaining voltage:
  - 30mA / 20V: TLC69600
  - 60mA / 20V: TLC69610
  - 30mA / 50V: TLC69650
  - 60mA / 50V: TLC69660
- Global 8-bit Maximum Current (MC) setting
- Individual 8-bit Channel Current (CC) setting
High speed daisy chain interface:
- I/O voltage compatible with: 1.8V / 3.3V
- Data transfer rate: up to 20MHz
EMI enhancement:
- Programmable interface driving capability
Display quality improvement:
- Minimum brightness update latency
- Programmable black insertion
- Variable refresh rate (VRR) without flickering
Diagnostics:
- Device thermal shutdown detection
- Report interface option:
  - UART and interrupt pin (INT)
  - Two-wire output: CLK_O and SOUT

Operating voltage VCC range: 3V to 5.5V
Flexible P-MOSFET driving options:
- Maximum driving current / sustaining voltage:
  - 30mA / 20V: TLC69600
  - 60mA / 20V: TLC69610
  - 30mA / 50V: TLC69650
  - 60mA / 50V: TLC69660
- Global 8-bit Maximum Current (MC) setting
- Individual 8-bit Channel Current (CC) setting
High speed daisy chain interface:
- I/O voltage compatible with: 1.8V / 3.3V
- Data transfer rate: up to 20MHz
EMI enhancement:
- Programmable interface driving capability
Display quality improvement:
- Minimum brightness update latency
- Programmable black insertion
- Variable refresh rate (VRR) without flickering
Diagnostics:
- Device thermal shutdown detection
- Report interface option:
  - UART and interrupt pin (INT)
  - Two-wire output: CLK_O and SOUT

Description

TLC696x0 is a scan MOSFET controller compatible with current-sink driver TLC696x2/4/8 to achieve 2/4/8 time-multiplexing control. Each device integrates with 16 constant current sinks for up to 8 scan MOSFETs control. The device equips with ghost-cancellation function to eliminate upside ghosting.

To optimize system efficiency, the device equips with adaptive headroom voltage control scheme to directly control DC/DC. Only the FB pin from last device in serial chain should be connected to DC/DC to acheive simplified system layout. The device also integrates minimum brightness update latency, black insertion and VRR features to improve display quality.

TLC696x0 has three error flags: LED open detection (LOD), LED short detection (LSD) and thermal shutdown detection (TSD) for diagnostic. The device implements two options for readback including UART/INT and SOUT/CLK_O which is programmable by register.
