ACTIVE
Number of channels |
2 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
16 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
4.5 |
Rail-to-rail |
In to V- |
GBW (typ) (MHz) |
10 |
Slew rate (typ) (V/µs) |
16 |
Vos (offset voltage at 25°C) (max) (mV) |
1.9 |
Iq per channel (typ) (mA) |
1.8 |
Vn at 1 kHz (typ) (nV√Hz) |
8.5 |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
Offset drift (typ) (µV/°C) |
1.2 |
Input bias current (max) (pA) |
50 |
CMRR (typ) (dB) |
110 |
Iout (typ) (A) |
0.1 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
0 |
Input common mode headroom (to positive supply) (typ) (V) |
-1.5 |
Output swing headroom (to negative supply) (typ) (V) |
0.18 |
Output swing headroom (to positive supply) (typ) (V) |
-0.7 |

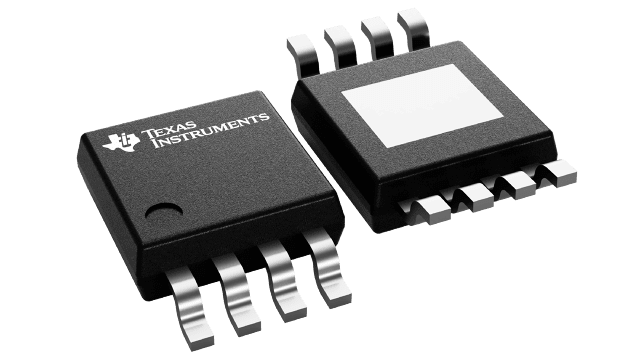

HVSSOP (DGN)-8-14.7 mm² 3 x 4.9
All trademarks are the property of their respective owners.
The TLC08x-Q1 is the first general purpose operational amplifier to highlight TI's BiCMOS technology. The BiMOS family concept is simple: provide an upgrade path for BiFET users who are moving away from dual-supply to single-supply systems and demand higher AC and DC performance. With performance rated from 4.5 V to 16 V across an automotive temperature range (–40°C to 125°C), BiMOS suits a wide range of audio, automotive, industrial, and instrumentation applications.
Developed in TI’s patented LBC3 BiCMOS process, the BiMOS amplifiers combine a very high input impedance, low-noise CMOS front end with a high-drive bipolar output stage, thus providing the optimum performance features of both. AC performance improvements over the TL08x-Q1 BiFET predecessors include a bandwidth of 10 MHz and voltage noise of 8.5 nV/√Hz. These features enable the TLC08x-Q1 devices to be suitable for ADAS (such as short-range radar) and body in automotive. The TLC082-Q1 is also suitable in infotainment and cluster as a pre amp in car audio applications.
DC improvements include an ensured VICR that includes ground, a factor of four reduction in input offset voltage down to 1.5 mV (maximum), and a power-supply rejection improvement of greater than 40 dB to 130 dB. Added to this list of impressive features is the ability to drive ±50-mA loads comfortably from an ultrasmall-footprint MSOP PowerPAD package, which positions the TLC08x-Q1 as the ideal high-performance, general-purpose operational amplifier family.
