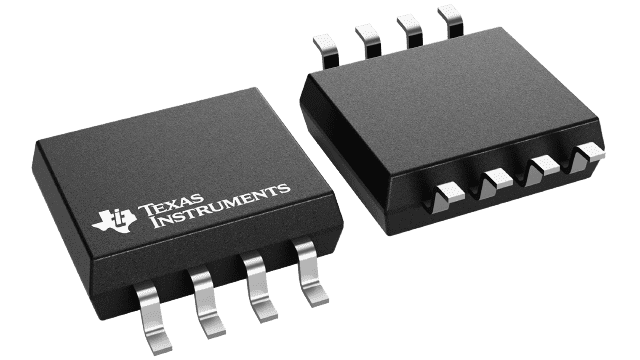

SN751701

ACTIVE

Line Driver and Receiver

Texas Instruments SN751701 Product Info

1 April 2026 3

Parameters

Drivers per package

1

Receivers per package

1

Logic voltage (min) (V)

5

Data rate (max) (Mbps)

0.3

Main supply voltage (nom) (V)

5, 12

ESD HBM (kV)

0

Rating

Catalog

Operating temperature range (°C)

-20 to 85

Vout (typ) (V)

9.7

Package

PDIP (P)-8-92.5083 mm² 9.81 x 9.43

Features

  • Meets or Exceeds the Requirements of ANSI TIA/EIA-232-C
  • Wide Range of Supply Voltage VCC = ±4.5 V to ±15 V
  • Low Power ...117 mW (VCC = ±9 V)
  • Receiver Output TTL Compatible
  • Response Control Provides:
    • Input Threshold Shifting
    • Input Noise Filtering

  • Meets or Exceeds the Requirements of ANSI TIA/EIA-232-C
  • Wide Range of Supply Voltage VCC = ±4.5 V to ±15 V
  • Low Power ...117 mW (VCC = ±9 V)
  • Receiver Output TTL Compatible
  • Response Control Provides:
    • Input Threshold Shifting
    • Input Noise Filtering

Description

The SN751701 line driver and receiver is designed to satisfy the requirements of the standard interface between data terminal equipment and data communication equipment as defined by ANSI TIA/EIA-232-E. The driver used is similar to the SN75188. The receiver used is similar to the SN75189A. The device operates over a wide range of supply voltages (VCC = ±4.5 V to ±15 V) from the included reference regulator.
