ACTIVE
Number of channels |
8 |
Technology family |
LVT |
Supply voltage (min) (V) |
2.7 |
Supply voltage (max) (V) |
3.6 |
Input type |
TTL-Compatible CMOS |
Output type |
Push-Pull |
Clock frequency (max) (MHz) |
150 |
IOL (max) (mA) |
64 |
IOH (max) (mA) |
-32 |
Supply current (max) (µA) |
5000 |
Features |
Bus-hold, Over-voltage tolerant inputs, Partial power down (Ioff), Ultra high speed (tpd <5ns) |
Operating temperature range (°C) |
-40 to 85 |
Rating |
Catalog |

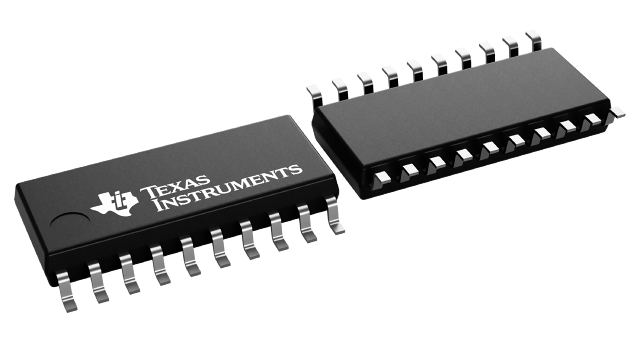

SOIC (DW)-20-131.84 mm² 12.8 x 10.3
These octal D-type flip-flops are designed specifically for low-voltage (3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment.
The LVTH273 devices are positive-edge-triggered flip-flops with a direct-clear input. Information at the data (D) inputs meeting the setup-time requirements is transferred to the Q outputs on the positive-going edge of the clock pulse. Clock triggering occurs at a particular voltage level and is not directly related to the transition time of the positive-going pulse. When the clock (CLK) input is at either the high or low level, the D-input signal has no effect at the output.
Active bus-hold circuitry holds unused or undriven inputs at a valid logic state. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended.
These devices are fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down.
