ACTIVE
Bits (#) |
8 |
Data rate (max) (Mbps) |
200 |
Topology |
Push-Pull |
Vin (min) (V) |
2.3 |
Vin (max) (V) |
3.6 |
Vout (min) (V) |
3 |
Vout (max) (V) |
5.5 |
Applications |
GPIO, JTAG, SPI, UART |
Features |
Output enable |
Prop delay (ns) |
11.2 |
Technology family |
LVC |
Supply current (max) (mA) |
0.13 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |

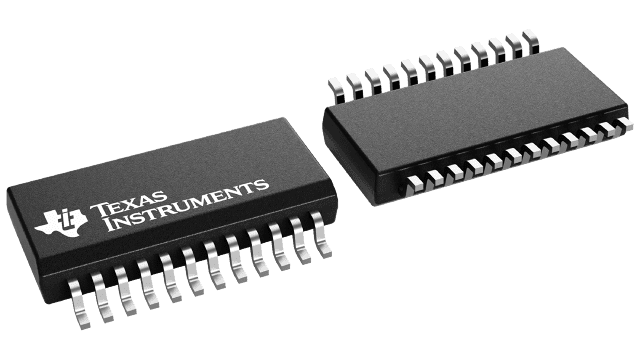

SOIC (DW)-24-159.65 mm² 15.5 x 10.3
The SN74LVCC3245A device is 8-bit (octal) noninverting bus transceiver contains two separate supply rails. The B port is designed to track VCCB, which accepts voltages from 3 V to 5.5 V, and the A port is designed to track VCCA, which operates at 2.3 V to 3.6 V. This allows for translation from a 3.3-V to a 5-V system environment and vice versa, from a 2.5-V to a 3.3-V system environment and vice versa.
