ACTIVE
Technology family |
LVC |
Number of channels |
4 |
Supply voltage (min) (V) |
1.1 |
Supply voltage (max) (V) |
3.6 |
Inputs per channel |
2 |
IOL (max) (mA) |
24 |
IOH (max) (mA) |
-24 |
Output type |
Push-Pull |
Input type |
Schmitt-Trigger |
Features |
Over-voltage tolerant inputs, Partial power down (Ioff), Ultra high speed (tpd <5ns) |
Data rate (max) (Mbps) |
100 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
TSSOP (PW)-14-32 mm² 5 x 6.4

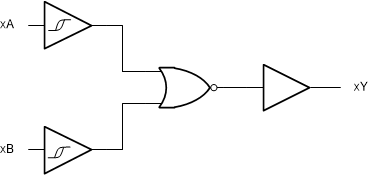

The SN74LVC7002A contains four independent 2-input NOR Gates with Schmitt-trigger inputs. Each gate performs the Boolean function Y = A + B in positive logic.
