SN74LVC1G04

ACTIVE

Texas Instruments SN74LVC1G04 Product Info

1 April 2026 1

Technology family	LVC
Supply voltage (min) (V)	1.65
Supply voltage (max) (V)	5.5
Number of channels	1
IOL (max) (mA)	32
IOH (max) (mA)	-32
Supply current (max) (µA)	10
Input type	Standard CMOS
Output type	Push-Pull
Features	Balanced outputs, Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns)
Rating	Catalog
Operating temperature range (°C)	-40 to 125

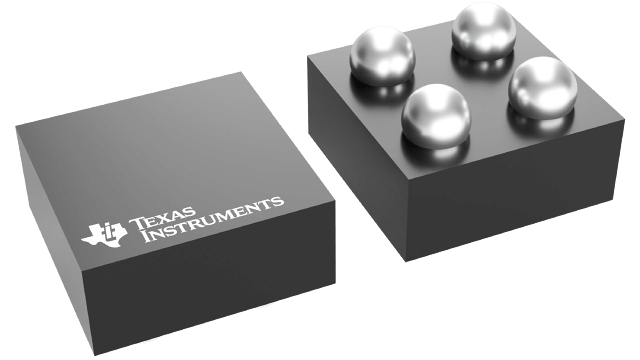

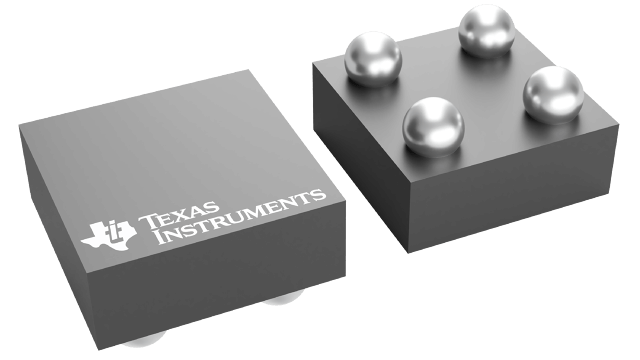

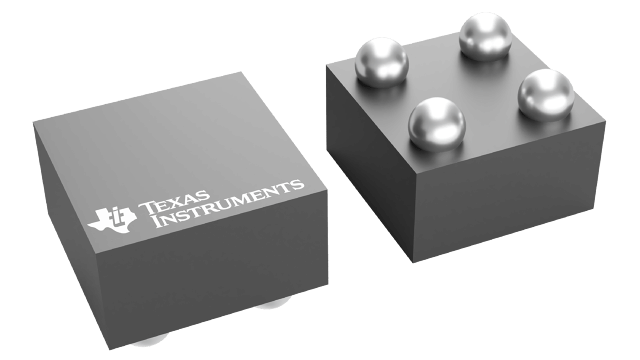

DSBGA (YZP)-5-2.1875 mm² 1.75 x 1.25

Available in the ultra-small 0.64mm2 package (DPW) with 0.5mm pitch
Supports 5V VCC operation
Inputs accept voltages up to 5.5V allowing down translation to VCC
Maximum tpd of 3.3ns at 3.3V
Low power consumption, 10µA maximum ICC
±24mA output drive at 3.3V
Ioff supports live-insertion, partial-power-down mode, and back-drive protection
Latch-up performance exceeds 100mA per JESD 78, Class II
ESD protection exceeds JESD 22
- 2000V human-body model (A114-A)
- 200V machine model (A115-A)
- 1000V charged-device model (C101)

Available in the ultra-small 0.64mm2 package (DPW) with 0.5mm pitch
Supports 5V VCC operation
Inputs accept voltages up to 5.5V allowing down translation to VCC
Maximum tpd of 3.3ns at 3.3V
Low power consumption, 10µA maximum ICC
±24mA output drive at 3.3V
Ioff supports live-insertion, partial-power-down mode, and back-drive protection
Latch-up performance exceeds 100mA per JESD 78, Class II
ESD protection exceeds JESD 22
- 2000V human-body model (A114-A)
- 200V machine model (A115-A)
- 1000V charged-device model (C101)

This single inverter gate is designed for 1.65V to 5.5V VCC operation.

The SN74LVC1G04 device performs the Boolean function Y = A.

The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range.

The SN74LVC1G04 device is available in a variety of packages, including the ultra-small DPW package with a body size of 0.8mm × 0.8mm.

This single inverter gate is designed for 1.65V to 5.5V VCC operation.

The SN74LVC1G04 device performs the Boolean function Y = A.

The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range.

The SN74LVC1G04 device is available in a variety of packages, including the ultra-small DPW package with a body size of 0.8mm × 0.8mm.
