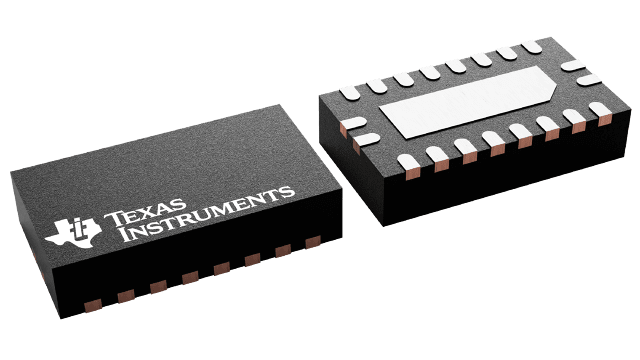

SN74LV541A

ACTIVE

Eight-channel, 2-V to 5.5-V buffers with tri-state outputs

Texas Instruments SN74LV541A Product Info

1 April 2026 1

Parameters

Technology family

LV-A

Supply voltage (min) (V)

2

Supply voltage (max) (V)

5.5

Number of channels

8

IOL (max) (mA)

16

Supply current (max) (µA)

20

IOH (max) (mA)

-16

Input type

Standard CMOS

Output type

3-State

Features

Balanced outputs, Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns)

Rating

Catalog

Operating temperature range (°C)

-40 to 125

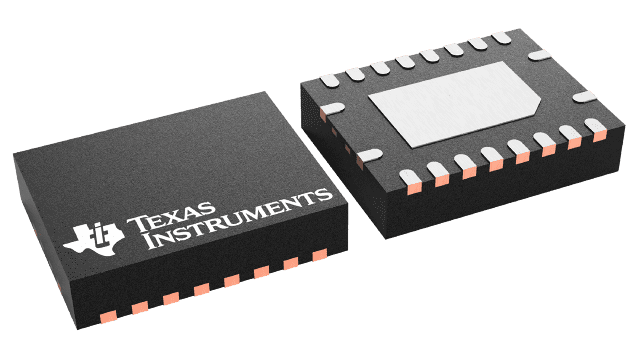

Package

SOIC (DW)-20-131.84 mm² 12.8 x 10.3

Features

  • Operation of 2-V to 5.5-V V CC
  • Max t pd of 6 ns at 5 V
  • Typical V OLP (output ground bounce) < 0.8 V at V CC = 3.3 V, T A = 25°C
  • Typical V OHV (output V OH undershoot) > 2.3 V at V CC = 3.3 V, T A = 25°C
  • Support mixed-mode voltage operation on all ports
  • I off supports partial-power-down mode operation
  • Latch-up performance exceeds 250 mA per JESD 17
  • Operation of 2-V to 5.5-V V CC
  • Max t pd of 6 ns at 5 V
  • Typical V OLP (output ground bounce) < 0.8 V at V CC = 3.3 V, T A = 25°C
  • Typical V OHV (output V OH undershoot) > 2.3 V at V CC = 3.3 V, T A = 25°C
  • Support mixed-mode voltage operation on all ports
  • I off supports partial-power-down mode operation
  • Latch-up performance exceeds 250 mA per JESD 17

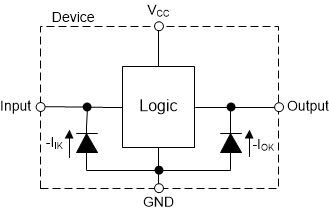

Description

The SN74LV541A device is an octal buffer/driver designed for 2-V to 5.5-V V CC operation.

The SN74LV541A device is an octal buffer/driver designed for 2-V to 5.5-V V CC operation.
