Texas Instruments SN74AUP1G57 Product Info

Parameters

Technology family	AUP
Supply voltage (min) (V)	0.8
Supply voltage (max) (V)	3.6
Number of channels	1
Inputs per channel	1
IOL (max) (mA)	4
IOH (max) (mA)	-4
Input type	Schmitt-Trigger
Output type	Push-Pull
Features	Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns)
Data rate (max) (Mbps)	100
Rating	Catalog
Operating temperature range (°C)	-40 to 85

Package

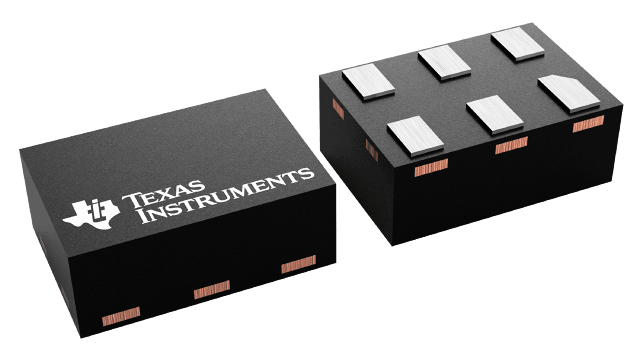

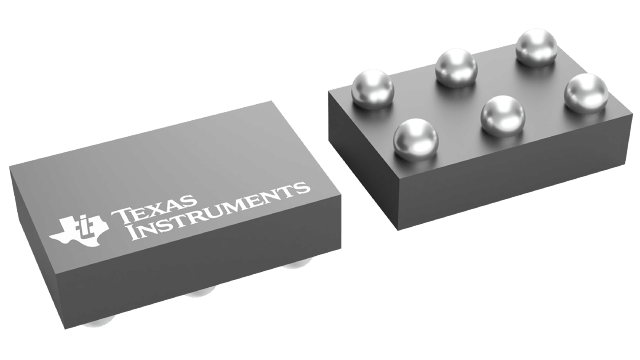

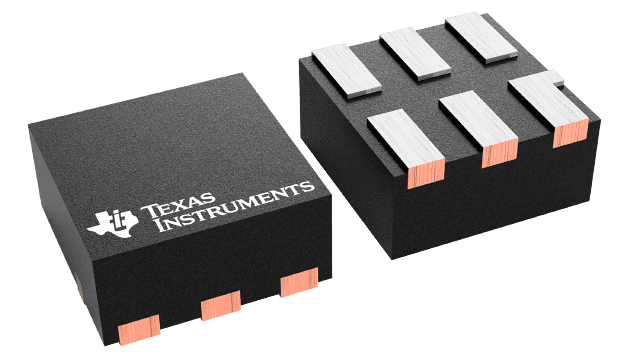

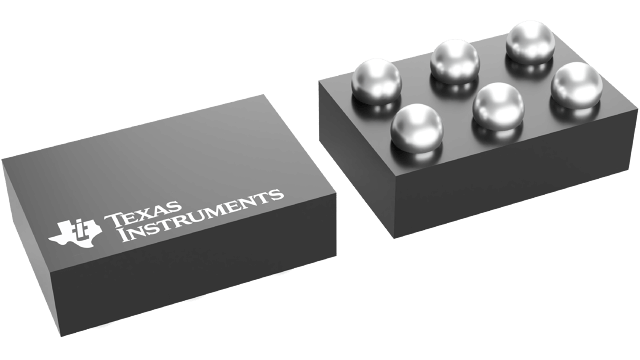

DSBGA (YZP)-6-2.1875 mm² 1.75 x 1.25

Features

Available in the Texas Instruments NanoStar™
Packages
Low Static-Power Consumption
(I_CC = 0.9 µA Maximum)
Low Dynamic-Power Consumption
(C_pd = 4.3 pF Typical at 3.3 V)
Low Input Capacitance (C_i = 1.5 pF Typical)
Low Noise – Overshoot and Undershoot
<10% of V_CC
I_off Supports Partial-Power-Down Mode Operation
Includes Schmitt-Trigger Inputs
Wide Operating V_CC Range of 0.8 V to 3.6 V
Optimized for 3.3-V Operation
3.6-V I/O Tolerant to Support Mixed-Mode Signal
Operation
t_pd = 5.3 ns Maximum at 3.3 V
Suitable for Point-to-Point Applications
Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
ESD Performance Tested Per JESD 22
- 2000-V Human-Body Model
  (A114-B, Class II)
- 1000-V Charged-Device Model (C101)
APPLICATIONS
- Active Noise Cancellation (ANC)
- Barcode Scanners
- Blood Pressure Monitors
- CPAP Machines
- Cable Solutions
- E-Books
- Embedded PCs
- Field Transmitter: Temperature or Pressure
  Sensors
- HVAC: Heating, Ventilating, and Air Conditioning
- Network-Attached Storage (NAS)
- Server Motherboard and PSU
- Software Defined Radio (SDR)
- TV: High-Definition (HDTV), LCD, and Digital
- Video Communications Systems

All other trademarks are the property of their respective owners

Available in the Texas Instruments NanoStar™
Packages
Low Static-Power Consumption
(I_CC = 0.9 µA Maximum)
Low Dynamic-Power Consumption
(C_pd = 4.3 pF Typical at 3.3 V)
Low Input Capacitance (C_i = 1.5 pF Typical)
Low Noise – Overshoot and Undershoot
<10% of V_CC
I_off Supports Partial-Power-Down Mode Operation
Includes Schmitt-Trigger Inputs
Wide Operating V_CC Range of 0.8 V to 3.6 V
Optimized for 3.3-V Operation
3.6-V I/O Tolerant to Support Mixed-Mode Signal
Operation
t_pd = 5.3 ns Maximum at 3.3 V
Suitable for Point-to-Point Applications
Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
ESD Performance Tested Per JESD 22
- 2000-V Human-Body Model
  (A114-B, Class II)
- 1000-V Charged-Device Model (C101)
APPLICATIONS
- Active Noise Cancellation (ANC)
- Barcode Scanners
- Blood Pressure Monitors
- CPAP Machines
- Cable Solutions
- E-Books
- Embedded PCs
- Field Transmitter: Temperature or Pressure
  Sensors
- HVAC: Heating, Ventilating, and Air Conditioning
- Network-Attached Storage (NAS)
- Server Motherboard and PSU
- Software Defined Radio (SDR)
- TV: High-Definition (HDTV), LCD, and Digital
- Video Communications Systems

All other trademarks are the property of their respective owners

Description

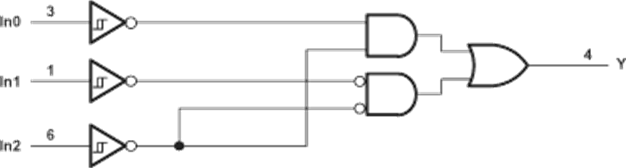

The SN74AUP1G57 device features configurable multiple functions. The output state is determined by eight patterns of 3-bit input. The user can choose the logic functions AND, OR, NAND, NOR, XNOR, inverter, and noninverter. All inputs can be connected to V_CCor GND.
