ACTIVE
Supply voltage (min) (V) |
2 |
Supply voltage (max) (V) |
6 |
Number of channels |
8 |
IOL (max) (mA) |
24 |
IOH (max) (mA) |
-24 |
Input type |
TTL |
Output type |
CMOS |
Features |
Balanced outputs, Positive input clamp diode, Very high speed (tpd 5-10ns) |
Technology family |
ACT |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
PDIP (N)-20-228.702 mm² 24.33 x 9.4

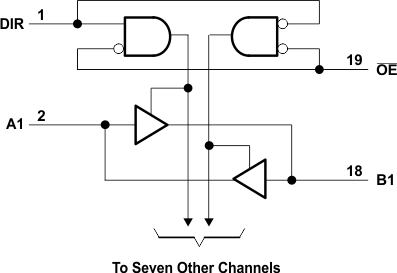

The AC245 octal bus transceivers are designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements.
