ACTIVE
Configuration |
2:1 SPDT |
Number of channels |
1 |
Power supply voltage - single (V) |
0.8, 1.2, 1.8, 2.5 |
Protocols |
Analog |
Ron (typ) (Ω) |
6 |
CON (typ) (pF) |
9 |
ON-state leakage current (max) (µA) |
1 |
Bandwidth (MHz) |
500 |
Operating temperature range (°C) |
-40 to 85 |
Input/output continuous current (max) (A) |
0.05 |
Rating |
Catalog |
Drain supply voltage (max) (V) |
2.7 |
Supply voltage (max) (V) |
2.7 |

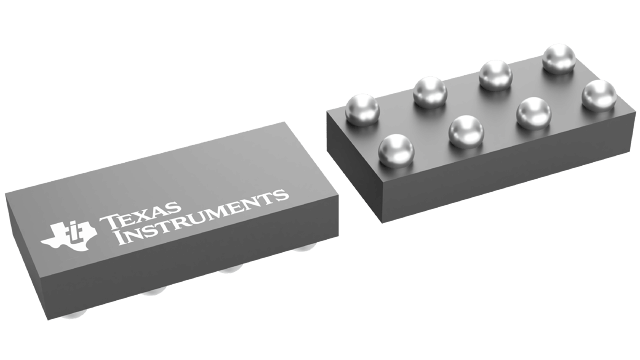

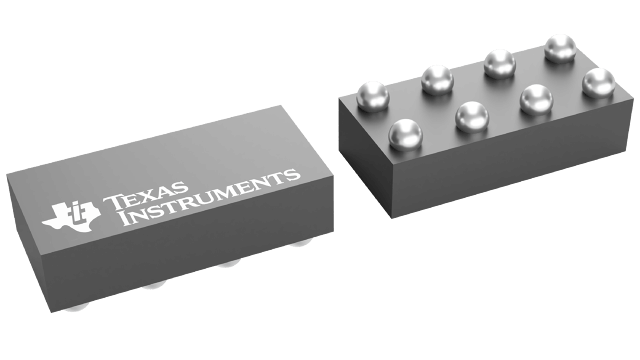

DSBGA (YZP)-8-2.8125 mm² 2.25 x 1.25
NanoFree Is a trademark of Texas Instruments.
This analog switch is operational at 0.8-V to 2.7-V VCC, but is designed specifically for 1.1-V to 2.7-V VCC operation.
The SN74AUC2G53 can handle both analog and digital signals. The device permits signals with amplitudes of up to VCC (peak) to be transmitted in either direction.
NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.
Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.
