ACTIVE
Supply voltage (min) (V) |
1.65 |
Supply voltage (max) (V) |
3.6 |
Number of channels |
16 |
IOL (max) (mA) |
12 |
IOH (max) (mA) |
-12 |
Input type |
Standard CMOS |
Output type |
3-State |
Features |
Balanced outputs, Damping resistors, Over-voltage tolerant inputs, Ultra high speed (tpd <5ns) |
Technology family |
ALVC |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |

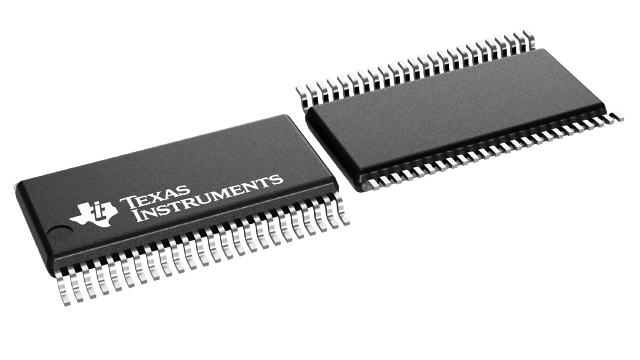

SSOP (DL)-48-164.358 mm² 15.88 x 10.35
Series Resistors, So No External Resistors Are RequiredWidebus is a trademark of Texas Instruments.
This 16-bit universal bus driver is designed for 1.65-V to 3.6-V VCC operation.
Data flow from A to Y is controlled by the output-enable (OE) input. The device operates in the transparent mode when the latch-enable (LE) input is low. When LE is high, the A data is latched if the clock (CLK) input is held at a high or low logic level. If LE is high, the A data is stored in the latch/flip-flop on the low-to-high transition of CLK. When OE is high, the outputs are in the high-impedance state.
The outputs, which are designed to sink up to 12 mA, include equivalent 26- resistors to reduce overshoot and undershoot.
To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
