SN74AHCT9541-Q1
  • SN74AHCT9541-Q1
  • SN74AHCT9541-Q1
  • SN74AHCT9541-Q1
  • SN74AHCT9541-Q1

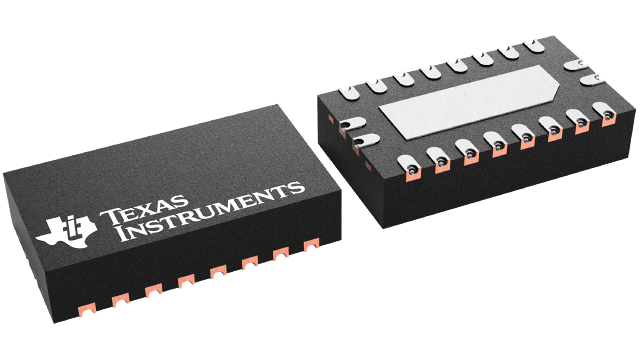

SN74AHCT9541-Q1

ACTIVE

Automotive octal buffers and line drivers with three-state outputs and Schmitt-trigger inputs

Texas Instruments SN74AHCT9541-Q1 Product Info

1 April 2026 1

Parameters

Rating

Automotive

Operating temperature range (°C)

to

Package

TSSOP (PW)-20-41.6 mm² 6.5 x 6.4

Features

  • AEC-Q100 qualified for automotive applications:
    • Device temperature grade 1: -40°C to +125°C
    • Device HBM ESD classification level 2
    • Device CDM ESD classification level C4B
  • Available in wettable flank QFN package
  • Supply operating range 4.5V to 5.5V
  • TTL-Compatible inputs
  • Low delay, 8.3ns at 5V, 50pF
  • Latch-up performance exceeds 100mAper JESD 17
  • AEC-Q100 qualified for automotive applications:
    • Device temperature grade 1: -40°C to +125°C
    • Device HBM ESD classification level 2
    • Device CDM ESD classification level C4B
  • Available in wettable flank QFN package
  • Supply operating range 4.5V to 5.5V
  • TTL-Compatible inputs
  • Low delay, 8.3ns at 5V, 50pF
  • Latch-up performance exceeds 100mAper JESD 17

Description

The SN74AHCT9541-Q1 is an octal buffer with 3- state outputs.

The SN74AHCT9541-Q1 is an octal buffer with 3- state outputs.
