0
ACTIVE
Technology family |
AHC |
Supply voltage (min) (V) |
2 |
Supply voltage (max) (V) |
5.5 |
Number of channels |
8 |
IOL (max) (mA) |
8 |
IOH (max) (mA) |
-8 |
Supply current (max) (µA) |
40 |
Input type |
Standard CMOS |
Output type |
3-State |
Features |
Balanced outputs, Over-voltage tolerant inputs, Very high speed (tpd 5-10ns) |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
TSSOP (PW)-20-41.6 mm² 6.5 x 6.4

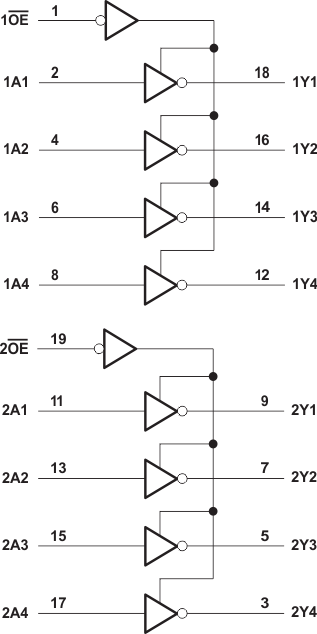

These octal buffers/drivers are designed specifically to improve the performance and density of 3-state memory-address drivers, clock drivers, and bus-oriented receivers and transmitters.
