Number of channels |
4 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
15 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
3 |
Vos (offset voltage at 25°C) (max) (mV) |
0.75 |
Offset drift (typ) (µV/°C) |
1 |
Input bias current (max) (pA) |
4 |
GBW (typ) (MHz) |
1.5 |
Slew rate (typ) (V/µs) |
1.3 |
Rail-to-rail |
In, Out |
Iq per channel (typ) (mA) |
0.4125 |
Vn at 1 kHz (typ) (nV√Hz) |
37 |
CMRR (typ) (dB) |
82 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
Iout (typ) (A) |
0.015 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.25 |
Input common mode headroom (to positive supply) (typ) (V) |
0.25 |
Output swing headroom (to negative supply) (typ) (V) |
0.1 |
Output swing headroom (to positive supply) (typ) (V) |
-0.1 |
THD + N at 1 kHz (typ) (%) |
0.01 |

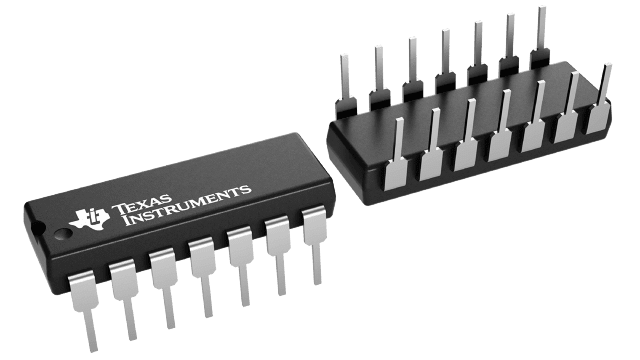

PDIP (N)-14-181.42 mm² 19.3 x 9.4
The LMC6482 and LMC6484 (LMC648x) devices provide a common-mode range that extends to both supply rails. This rail-to-rail performance combined with excellent accuracy, due to a high CMRR, makes these devices unique among rail-to-rail input amplifiers. The devices are an excellent choice for systems that require a large input signal range, such as data acquisition. The LMC648x are also an excellent upgrade for circuits using limited common-mode range amplifiers, such as the TLC272, TLC274, TLC277 and TLC279.
Maximum dynamic signal range is provided in low voltage and single supply systems by the rail-to-rail output swing of the LMC648x. The rail-to-rail output swing is maintained for loads down to 600Ω of the device. Specified low-voltage characteristics and low-power dissipation make the LMC648x a great choice for battery-operated systems.
The LMC648x devices are available in PDIP, SOIC, and VSSOP packages.
