TAS5720A-Q1
  • TAS5720A-Q1
  • TAS5720A-Q1

TAS5720A-Q1

ACTIVE

Automotive, 25-W, 1-ch , 4.5- to 26.4-V supply digital input Class-D audio amplifier

Texas Instruments TAS5720A-Q1 Product Info

1 April 2026 0

Parameters

Output power (W)

25

Power stage supply (max) (V)

26.4

Power stage supply (min) (V)

4.5

Speaker channels (max)

Mono

Audio input type

Digital Input

Control interface

Hardware, Software

THD + N at 1 kHz (%)

0.02

Sampling rate (max) (Hz)

96000

Rating

Automotive

Operating temperature range (°C)

-40 to 105

Package

HTSSOP (DAP)-32-89.1 mm² 11 x 8.1

Features

  • Qualified for automotive applications
    • Temperature grade 1: –40°C to +125°C
  • Minimum supply voltage down to 4.5 V
  • Selectable hardware or software control
  • Audio performance (PVDD = 12 V, RSPK = 8 Ω, SPK_GAIN[1:0] pins = 00)
    • Idle channel noise = 69 µVrms (A-Wtd)
    • THD+N = 0.02% (at 1 W, 1 kHz)
    • SNR = 100 dB A-Wtd (Ref. to THD+N = 1%)
  • Audio I/O configuration:
    • Mono I²S input
    • 32, 44.1, 48, 88.2, 96 kHz Sample rates
  • General operational features:
    • Integrated digital output clipper
    • Programmable I²C address (1101100[R/W] or 1101101[R/W])
    • Closed-loop amplifier architecture
  • Robustness features:
    • Clock error, DC, and short-circuit protection
    • Overtemperature and programmable overcurrent protection
  • Qualified for automotive applications
    • Temperature grade 1: –40°C to +125°C
  • Minimum supply voltage down to 4.5 V
  • Selectable hardware or software control
  • Audio performance (PVDD = 12 V, RSPK = 8 Ω, SPK_GAIN[1:0] pins = 00)
    • Idle channel noise = 69 µVrms (A-Wtd)
    • THD+N = 0.02% (at 1 W, 1 kHz)
    • SNR = 100 dB A-Wtd (Ref. to THD+N = 1%)
  • Audio I/O configuration:
    • Mono I²S input
    • 32, 44.1, 48, 88.2, 96 kHz Sample rates
  • General operational features:
    • Integrated digital output clipper
    • Programmable I²C address (1101100[R/W] or 1101101[R/W])
    • Closed-loop amplifier architecture
  • Robustness features:
    • Clock error, DC, and short-circuit protection
    • Overtemperature and programmable overcurrent protection

Description

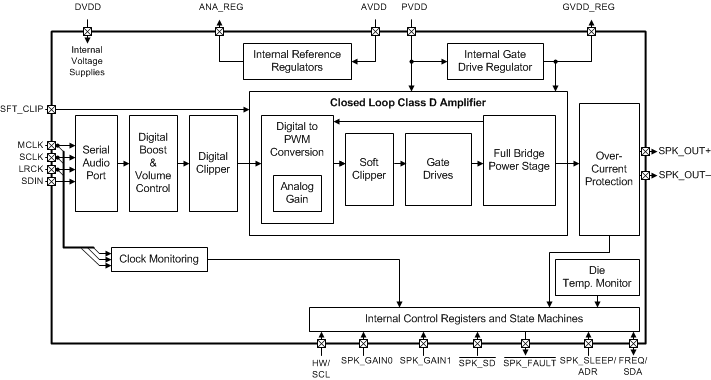

The TAS5720A-Q1 is a mono I2S input Class-D audio amplifier which is ideal for use in automotive emergency call (eCall), telematics, acoustic vehicle alerting system (AVAS) and EV/HEV sound generation applications. The device provides up to 25 W instantaneous power into 4 Ω at 10% THD+N at 14.4 V. The TAS5720A-Q1 also includes hardware and software (I²C) control modes, an integrated digital clipper, selectable gain options, and a wide power supply operating range (4.5 V – 26.4 V).

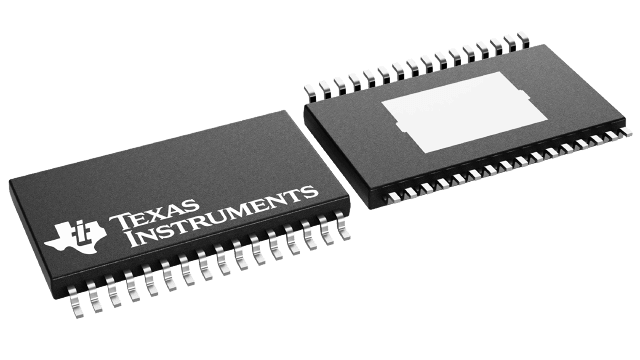

The device is offered in a thermally enhanced 32-Pin TSSOP package.

The TAS5720A-Q1 is a mono I2S input Class-D audio amplifier which is ideal for use in automotive emergency call (eCall), telematics, acoustic vehicle alerting system (AVAS) and EV/HEV sound generation applications. The device provides up to 25 W instantaneous power into 4 Ω at 10% THD+N at 14.4 V. The TAS5720A-Q1 also includes hardware and software (I²C) control modes, an integrated digital clipper, selectable gain options, and a wide power supply operating range (4.5 V – 26.4 V).

The device is offered in a thermally enhanced 32-Pin TSSOP package.
