Texas Instruments SN74ACT132-Q1 Product Info

Parameters

Rating	Automotive
Operating temperature range (°C)	to

TSSOP (PW)-14-32 mm² 5 x 6.4

AEC-Q100 qualified for automotive applications:
- Device temperature grade 1: -40°C to +125°C
- Device HBM ESD classification level 2
- Device CDM ESD classification level C4B

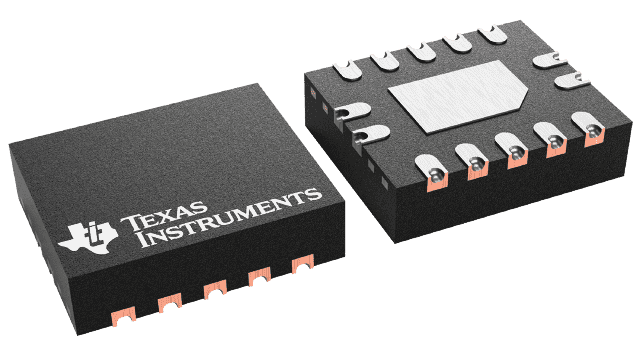

Available in wettable flank QFN package
Operating voltage range of 4.5V to 5.5V
TTL-compatible Schmitt-trigger inputs support slow and noisy input signals
Continuous ±24mA output drive at 5V
Supports up to ±75mA output drive at 5Vin short bursts
Drives 50Ω transmission lines
Fast operation with delay of 10.2ns

AEC-Q100 qualified for automotive applications:
- Device temperature grade 1: -40°C to +125°C
- Device HBM ESD classification level 2
- Device CDM ESD classification level C4B
Available in wettable flank QFN package
Operating voltage range of 4.5V to 5.5V
TTL-compatible Schmitt-trigger inputs support slow and noisy input signals
Continuous ±24mA output drive at 5V
Supports up to ±75mA output drive at 5Vin short bursts
Drives 50Ω transmission lines
Fast operation with delay of 10.2ns

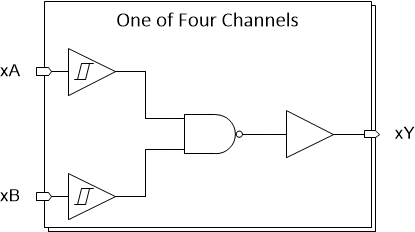

The SN74ACT132-Q1 contains four independent 2- input NAND gates. Each gate performs the Boolean function Y = /A • /B.
