ACTIVE
Supply voltage (min) (V) |
4.5 |
Supply voltage (max) (V) |
5.5 |
Number of channels |
16 |
IOL (max) (mA) |
64 |
IOH (max) (mA) |
-32 |
Input type |
TTL |
Output type |
TTL |
Features |
Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns) |
Technology family |
ABT |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |

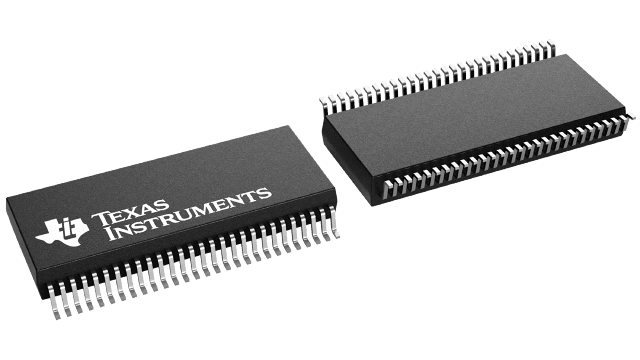

SSOP (DL)-56-190.647 mm² 18.42 x 10.35
Widebus and EPIC-IIB are trademarks of Texas Instruments Incorporated.
The 'ABT16952 are 16-bit registered transceivers that contain two sets of D-type flip-flops for temporary storage of data flowing in either direction. The 'ABT16952 can be used as two 8-bit transceivers or one 16-bit transceiver. Data on the A or B bus is stored in the registers on the low-to-high transition of the clock (CLKAB or CLKBA) input provided that the clock-enable (CLKENAB or CLKENBA) input is low. Taking the output-enable (OEAB or OEBA) input low accesses the data on either port.
To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
The SN54ABT16952 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ABT16952 is characterized for operation from -40°C to 85°C.
