ACTIVE
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
5.5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
1.8 |
Rail-to-rail |
In, Out |
GBW (typ) (MHz) |
20 |
Slew rate (typ) (V/µs) |
10 |
Vos (offset voltage at 25°C) (max) (mV) |
2 |
Iq per channel (typ) (mA) |
1.6 |
Vn at 1 kHz (typ) (nV√Hz) |
8.5 |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
Offset drift (typ) (µV/°C) |
1.8 |
Features |
Zero Crossover |
Input bias current (max) (pA) |
800 |
CMRR (typ) (dB) |
100 |
Iout (typ) (A) |
0.065 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.1 |
Input common mode headroom (to positive supply) (typ) (V) |
0.1 |
Output swing headroom (to negative supply) (typ) (V) |
0.01 |
Output swing headroom (to positive supply) (typ) (V) |
-0.01 |
SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8

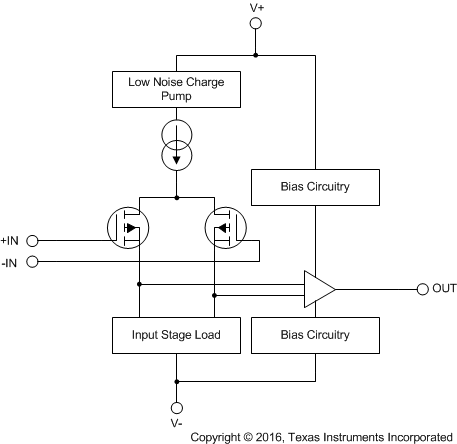

The OPAx322-Q1 series consists of single-, dual-, and quad-channel CMOS operational amplifiers featuring low noise and rail-to-rail inputs and outputs optimized for low-power, single-supply applications. Specified over a wide supply range from 1.8 V to 5.5 V, the low quiescent current of only 1.5 mA per channel makes these devices well-suited for power-sensitive applications.
The combination of very-low noise (8.5 nV√Hz at 1 kHz), high-gain bandwidth (20 MHz), and fast slew rate (10 V/µs) make the OPAx322-Q1 family ideal for a wide range of applications, including signal conditioning and sensor amplification requiring high gains. Featuring low THD+N, the OPAx322-Q1 family is also excellent for consumer audio applications, particularly for single-supply systems.
The OPA322-Q1 (single version) is available in 5-pin SOT-23 package, while the OPA2322-Q1 (dual version) is offered in a 8-pin VSSOP package. The OPA4322-Q1 (quad version) is available in a 14-pin TSSOP package. All versions are specified for operation from –40°C to +125°C.
