ACTIVE
Number of channels |
2 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
36 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
2.7 |
Rail-to-rail |
In to V-, Out |
GBW (typ) (MHz) |
1.2 |
Slew rate (typ) (V/µs) |
0.4 |
Vos (offset voltage at 25°C) (max) (mV) |
1.8 |
Iq per channel (typ) (mA) |
0.1 |
Vn at 1 kHz (typ) (nV√Hz) |
19 |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
Offset drift (typ) (µV/°C) |
0.3 |
Features |
EMI Hardened |
Input bias current (max) (pA) |
15 |
CMRR (typ) (dB) |
120 |
Iout (typ) (A) |
0.017 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.1 |
Input common mode headroom (to positive supply) (typ) (V) |
-2 |
Output swing headroom (to negative supply) (typ) (V) |
0.008 |
Output swing headroom (to positive supply) (typ) (V) |
-0.15 |
VSSOP (DGK)-8-14.7 mm² 3 x 4.9

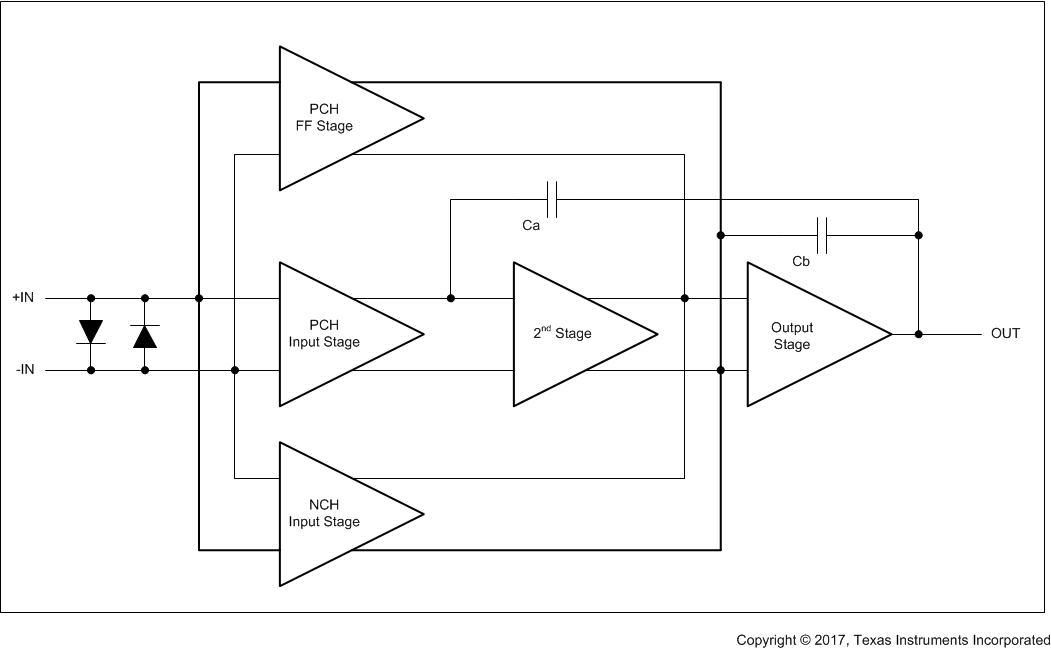

The OPA170-Q1, OPA2170-Q1, and OPA4170-Q1 devices (OPAx170-Q1) are a family of 36-V, single-supply, low-noise operational amplifiers that feature micro packages with the ability to operate on supplies ranging from 2.7 V (±1.35 V) to 36 V (±18 V). They offer good offset, drift, and bandwidth with low quiescent current.
Unlike most operational amplifiers, which are specified at only one supply voltage, the OPAx170-Q1 family of operational amplifiers is specified from 2.7 V to 36 V. Input signals beyond the supply rails do not cause phase reversal. The OPAx170-Q1 family is stable with capacitive loads up to 300 pF. The input can operate 100 mV below the negative rail and within 2 V of the positive rail for normal operation. Note that these devices can operate with full rail-to-rail input 100 mV beyond the positive rail, but with reduced performance within 2 V of the positive rail. The OPAx170-Q1 operational amplifiers are specified from –40°C to +125°C.
