ACTIVE
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
36 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
4.5 |
Vos (offset voltage at 25°C) (max) (mV) |
0.2 |
Offset drift (typ) (µV/°C) |
0.5 |
Input bias current (max) (pA) |
2000 |
GBW (typ) (MHz) |
1 |
Features |
Cost Optimized, High Cload Drive, Super Beta |
Slew rate (typ) (V/µs) |
0.35 |
Rail-to-rail |
No |
Iq per channel (typ) (mA) |
0.58 |
Vn at 1 kHz (typ) (nV√Hz) |
9 |
CMRR (typ) (dB) |
148 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 120 |
Iout (typ) (A) |
0.035 |
Architecture |
Bipolar |
Input common mode headroom (to negative supply) (typ) (V) |
1.5 |
Input common mode headroom (to positive supply) (typ) (V) |
-1.5 |
Output swing headroom (to negative supply) (typ) (V) |
0.65 |
Output swing headroom (to positive supply) (typ) (V) |
-0.65 |
THD + N at 1 kHz (typ) (%) |
0.0002 |
SOIC (D)-8-29.4 mm² 4.9 x 6

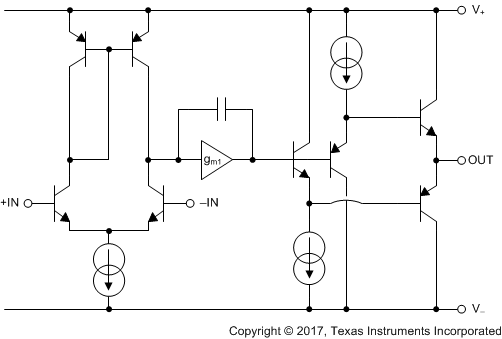

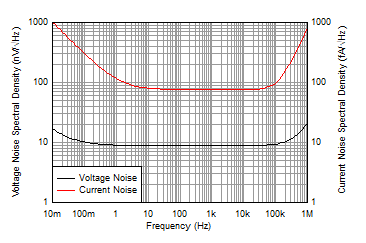

The OPA202, OPA2202, and OPA4202 (OPAx202) are a family of devices built on TIs industry-leading precision super-beta, complementary, bipolar semiconductor process. This process offers ultra-low flicker noise, low offset voltage, low offset voltage temperature drift, and excellent linearity with common-mode and power-supply variation. These devices offer an exceptional combination of dc precision, heavy capacitive load drive, and protection against external EMI, thermal, and short-circuit events.
The supply current is 580 µA at ±18 V. The OPAx202 do not exhibit phase inversion, and the series is stable with high capacitive loads. The OPAx202 are fully specified with a temperature range from –40°C to +105°C.
