Texas Instruments MSP430F5229 Product Info

Parameters

CPU	MSP430
Frequency (MHz)	25
Flash memory (kByte)	128
RAM (kByte)	8
ADC type	10-bit SAR
Features	1.8V I/O, Real-time clock
UART	2
Number of ADC channels	10
SPI	4
USB	No
Hardware accelerators	0
Operating temperature range (°C)	-40 to 85
Rating	Catalog
Communication interface	I2C, SPI, UART
Operating system	BareMetal (No OS), TI RTOS
Nonvolatile memory (kByte)	128
Number of GPIOs	53
Number of I2Cs	2
Security	Secure debug

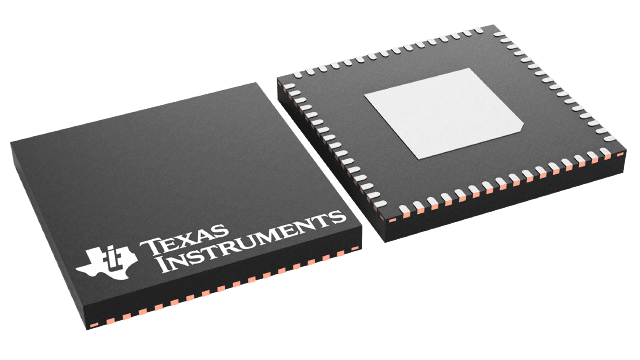

Package

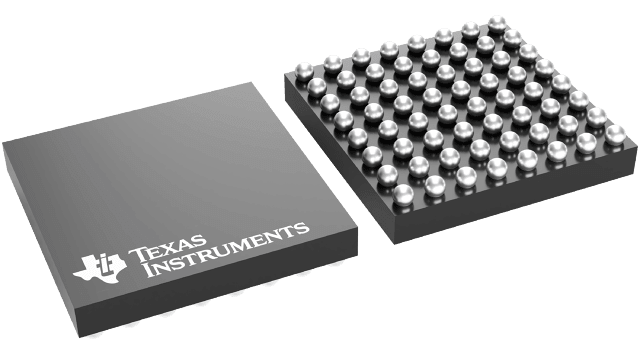

DSBGA (YFF)-64-12.95999999999999712000000000000016 mm² 3.5999999999999996 x 3.5999999999999996

Features

Dual-Supply Voltage Device
- Primary Supply (AVCC, DVCC):
  - Powered From External Supply:
    3.6 V Down to 1.8 V
  - Up to 22 General-Purpose I/Os With up to Four External Interrupts
- Low-Voltage Interface Supply (DVIO):
  - Powered From Separate External Supply: 1.62 V to 1.98 V
  - Up to 31 General-Purpose I/Os With up to 12 External Interrupts
  - Serial Communications
Ultra-Low Power Consumption
- Active Mode (AM):
  All System Clocks Active
  290 µA/MHz at 8 MHz, 3.0 V, Flash Program Execution (Typical)
  150 µA/MHz at 8 MHz, 3.0 V, RAM Program Execution (Typical)
- Standby Mode (LPM3):
  Real-Time Clock (RTC) With Crystal, Watchdog, and Supply Supervisor Operational, Full RAM Retention, Fast Wakeup:
  1.9 µA at 2.2 V, 2.1 µA at 3.0 V (Typical)
  Low-Power Oscillator (VLO), General-Purpose Counter, Watchdog, and Supply Supervisor Operational, Full RAM Retention, Fast Wakeup:
  1.4 µA at 3.0 V (Typical)
- Off Mode (LPM4):
  Full RAM Retention, Supply Supervisor Operational, Fast Wakeup:
  1.1 µA at 3.0 V (Typical)
- Shutdown Mode (LPM4.5):
  0.18 µA at 3.0 V (Typical)
Wake up From Standby Mode in 3.5 µs (Typical)
16-Bit RISC Architecture, Extended Memory, up to 25-MHz System Clock
Flexible Power-Management System
- Fully Integrated LDO With Programmable Regulated Core Supply Voltage
- Supply Voltage Supervision, Monitoring, and Brownout
Unified Clock System
- FLL Control Loop for Frequency Stabilization
- Low-Power Low-Frequency Internal Clock Source (VLO)
- Low-Frequency Trimmed Internal Reference Source (REFO)
- 32-kHz Watch Crystals (XT1)
- High-Frequency Crystals up to 32 MHz (XT2)
16-Bit Timer TA0, Timer_A With Five Capture/Compare Registers
16-Bit Timer TA1, Timer_A With Three Capture/Compare Registers
16-Bit Timer TA2, Timer_A With Three Capture/Compare Registers
16-Bit Timer TB0, Timer_B With Seven Capture/Compare Shadow Registers
Two Universal Serial Communication Interfaces
- USCI_A0 and USCI_A1 Each Support:
  - Enhanced UART With Automatic Baud Rate Detection
  - IrDA Encoder and Decoder
  - Synchronous SPI
- USCI_B0 and USCI_B1 Each Support:
  - I²C
  - Synchronous SPI
10-Bit Analog-to-Digital Converter (ADC) With Internal Reference, Sample-and-Hold
Comparator
Hardware Multiplier Supports 32-Bit Operations
Serial Onboard Programming, No External Programming Voltage Needed
Three-Channel Internal DMA
Basic Timer With RTC Feature
Device Comparison Summarizes Available Family Members

Dual-Supply Voltage Device
- Primary Supply (AVCC, DVCC):
  - Powered From External Supply:
    3.6 V Down to 1.8 V
  - Up to 22 General-Purpose I/Os With up to Four External Interrupts
- Low-Voltage Interface Supply (DVIO):
  - Powered From Separate External Supply: 1.62 V to 1.98 V
  - Up to 31 General-Purpose I/Os With up to 12 External Interrupts
  - Serial Communications
Ultra-Low Power Consumption
- Active Mode (AM):
  All System Clocks Active
  290 µA/MHz at 8 MHz, 3.0 V, Flash Program Execution (Typical)
  150 µA/MHz at 8 MHz, 3.0 V, RAM Program Execution (Typical)
- Standby Mode (LPM3):
  Real-Time Clock (RTC) With Crystal, Watchdog, and Supply Supervisor Operational, Full RAM Retention, Fast Wakeup:
  1.9 µA at 2.2 V, 2.1 µA at 3.0 V (Typical)
  Low-Power Oscillator (VLO), General-Purpose Counter, Watchdog, and Supply Supervisor Operational, Full RAM Retention, Fast Wakeup:
  1.4 µA at 3.0 V (Typical)
- Off Mode (LPM4):
  Full RAM Retention, Supply Supervisor Operational, Fast Wakeup:
  1.1 µA at 3.0 V (Typical)
- Shutdown Mode (LPM4.5):
  0.18 µA at 3.0 V (Typical)
Wake up From Standby Mode in 3.5 µs (Typical)
16-Bit RISC Architecture, Extended Memory, up to 25-MHz System Clock
Flexible Power-Management System
- Fully Integrated LDO With Programmable Regulated Core Supply Voltage
- Supply Voltage Supervision, Monitoring, and Brownout
Unified Clock System
- FLL Control Loop for Frequency Stabilization
- Low-Power Low-Frequency Internal Clock Source (VLO)
- Low-Frequency Trimmed Internal Reference Source (REFO)
- 32-kHz Watch Crystals (XT1)
- High-Frequency Crystals up to 32 MHz (XT2)
16-Bit Timer TA0, Timer_A With Five Capture/Compare Registers
16-Bit Timer TA1, Timer_A With Three Capture/Compare Registers
16-Bit Timer TA2, Timer_A With Three Capture/Compare Registers
16-Bit Timer TB0, Timer_B With Seven Capture/Compare Shadow Registers
Two Universal Serial Communication Interfaces
- USCI_A0 and USCI_A1 Each Support:
  - Enhanced UART With Automatic Baud Rate Detection
  - IrDA Encoder and Decoder
  - Synchronous SPI
- USCI_B0 and USCI_B1 Each Support:
  - I²C
  - Synchronous SPI
10-Bit Analog-to-Digital Converter (ADC) With Internal Reference, Sample-and-Hold
Comparator
Hardware Multiplier Supports 32-Bit Operations
Serial Onboard Programming, No External Programming Voltage Needed
Three-Channel Internal DMA
Basic Timer With RTC Feature
Device Comparison Summarizes Available Family Members

Description

The TI MSP430™ family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with extensive low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows the device to wake up from low-power modes to active mode in 3.5 µs (typical).

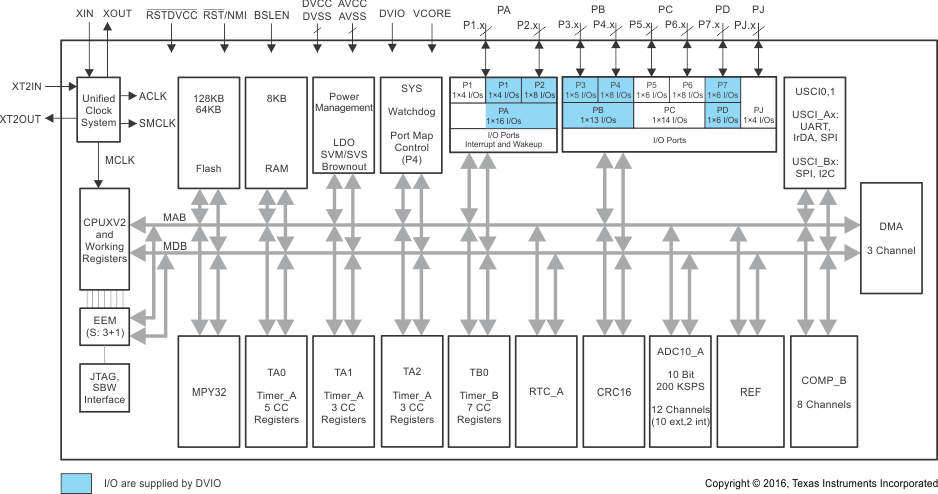

The MSP430F522x series are microcontrollers with four 16-bit timers, a high-performance 10-bit ADC, two universal serial communication interfaces (USCIs), a hardware multiplier, DMA, a comparator, and an RTC module with alarm capabilities.

The MSP430F521x series include all of the peripherals of the MSP430F522x series with the exception of the ADC.

All devices have a split I/O supply system that allows for a seamless interface to other devices that have a nominal 1.8-V I/O interface without the need for external level translation.

For complete module descriptions, see the MSP430F5xx and MSP430F6xx Family Users Guide. For design guidelines, see Designing With MSP430F522x and MSP430F521x Devices.

The TI MSP430™ family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with extensive low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows the device to wake up from low-power modes to active mode in 3.5 µs (typical).

The MSP430F522x series are microcontrollers with four 16-bit timers, a high-performance 10-bit ADC, two universal serial communication interfaces (USCIs), a hardware multiplier, DMA, a comparator, and an RTC module with alarm capabilities.

The MSP430F521x series include all of the peripherals of the MSP430F522x series with the exception of the ADC.

All devices have a split I/O supply system that allows for a seamless interface to other devices that have a nominal 1.8-V I/O interface without the need for external level translation.

For complete module descriptions, see the MSP430F5xx and MSP430F6xx Family Users Guide. For design guidelines, see Designing With MSP430F522x and MSP430F521x Devices.
