ACTIVE
Number of channels |
2 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
5.5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
2.4 |
Rail-to-rail |
In, Out |
GBW (typ) (MHz) |
10 |
Slew rate (typ) (V/µs) |
6.5 |
Vos (offset voltage at 25°C) (max) (mV) |
3 |
Iq per channel (typ) (mA) |
0.6 |
Vn at 1 kHz (typ) (nV√Hz) |
8.7 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
Offset drift (typ) (µV/°C) |
1.1 |
Features |
EMI Hardened |
CMRR (typ) (dB) |
103 |
Iout (typ) (A) |
0.05 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.1 |
Input common mode headroom (to positive supply) (typ) (V) |
0.1 |
Output swing headroom (to negative supply) (typ) (V) |
0.015 |
Output swing headroom (to positive supply) (typ) (V) |
-0.015 |
SOIC (D)-8-29.4 mm² 4.9 x 6

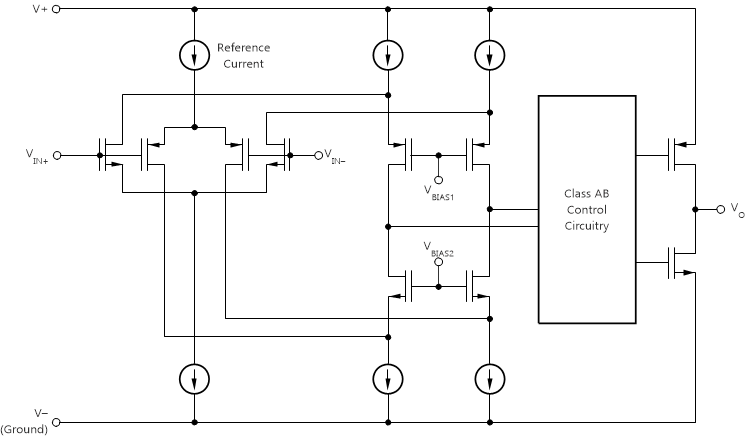

The MCP6291 (single), MCP6292 (dual), and MCP6294 (quad) devices comprise a family of general-purpose, low-power operational amplifiers. Features such as rail-to-rail input and output swings, low quiescent current (600-µA/ch typical) combined with a wide bandwidth of 10 MHz, and low noise (8.7 nV/√Hz at 10 kHz) make this family attractive for a variety of applications that require a balance between cost and performance. The low input bias current enables the family to be used in applications with high-source impedances.
The robust design of the MCP629x provides ease-of-use to the circuit designer: a unity-gain stable, integrated RFI and EMI rejection filter, no phase reversal in overdrive condition, and high electrostatic discharge (ESD) protection (4-kV HBM).
The MCP629x family operates over the extended temperature range of –40°C to 125°C. The family has a power supply range of 2.4 V to 5.5 V.
